Drive shaft, single components, 4-wheel for BMW 7 Series G11 LCI 740dX (2022)

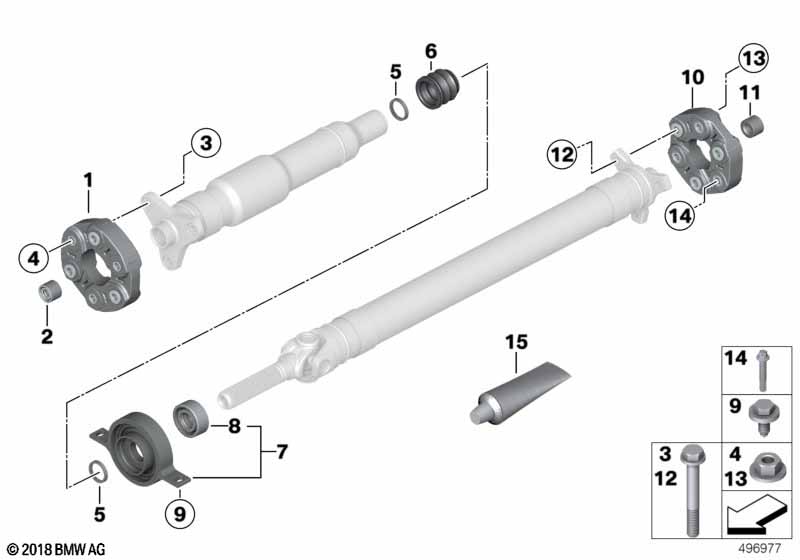

This Drive shaft, single components, 4-wheel technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 740dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Universal joint | LK=105MM/12 | 1 | 26117610061 | Shop at ECS Tuning | |||||
| 02 | Centering sleeve | 1 | 26117526611 | $11.32 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M12X1,5X71-ZNS3 | 3 | 26117527475 | $2.08 | Shop at ECS Tuning | ||||
| 04 | Hexagon nut with collar | M12X1,5-10 ZNS3 | 3 | 33326760368 | Shop at ECS Tuning | |||||
| 05 | Damper ring | D=38/D=33 | 2 | 26117581110 | Shop at ECS Tuning | |||||
| 06 | Rubber boot, center bearing | 1 | 11/2024 | 26117526628 | $8.45 | Shop at ECS Tuning | ||||
| 06 | Rubber boot, center bearing | 1 | 26118881330 | Shop at ECS Tuning | ||||||
| 07 | Center Mount, aluminium | 1 | 26118488058 | Shop at ECS Tuning | ||||||
| 08 | Grooved ball bearing | D=55/D=35 | 1 | 26121225002 | $30.45 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M8X24-8.8-ZNS3 | 2 | 26127521853 | $1.18 | Shop at ECS Tuning | ||||
| 10 | Universal joint | LK=105MM/12 | 1 | 26117610061 | Shop at ECS Tuning | |||||
| 11 | Centering sleeve hard | 1 | 26117562574 | Shop at ECS Tuning | ||||||
| 12 | Hex bolt | M12X1,5X71-ZNS3 | 3 | 26117527475 | $2.08 | Shop at ECS Tuning | ||||
| 13 | Hexagon nut with collar | M12X1,5-10 ZNS3 | 3 | 33326760368 | Shop at ECS Tuning | |||||
| 14 | Torx screw | M12X1,5X55-ZNS3 | 3 | 26118607971 | Shop at ECS Tuning | |||||
| 15 | Grease Optitemp HT 1 LF | 50G | 1 | 11/2024 | 83230417754 | Shop at ECS Tuning |
