Hardy couplings/center bearing/inner nut for BMW 7 Series G12 LCI 730Ld (2021)

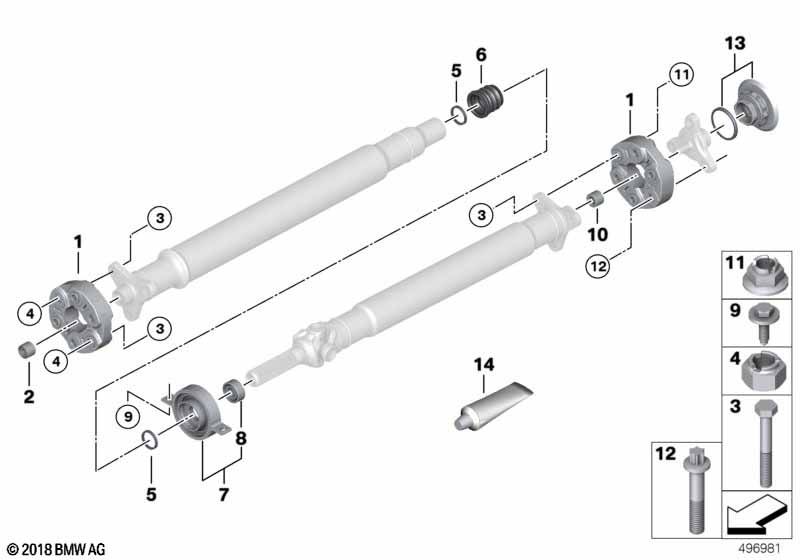

This Hardy couplings/center bearing/inner nut technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 LCI 730Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Universal joint | LK=110MM/12 | 2 | 26117546426 | $138.96 | Shop at ECS Tuning | ||||
| 02 | Centering sleeve | 1 | 26117526611 | $11.32 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M12X1,5X71-ZNS3 | 9 | 26117527475 | $2.08 | Shop at ECS Tuning | ||||
| 04 | Hexagon nut with collar | M12X1,5-10 ZNS3 | 6 | 33326760368 | Shop at ECS Tuning | |||||
| 05 | Damper ring | D=38/D=33 | 2 | 26117581110 | Shop at ECS Tuning | |||||
| 06 | Rubber boot, center bearing | 1 | 11/2024 | 26117526628 | $8.45 | Shop at ECS Tuning | ||||
| 06 | Rubber boot, center bearing | 1 | 26118881330 | Shop at ECS Tuning | ||||||
| 07 | Center Mount, aluminium | 1 | 26118488058 | Shop at ECS Tuning | ||||||
| 08 | Grooved ball bearing | D=55/D=35 | 1 | 26121225002 | $30.45 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M8X24-8.8-ZNS3 | 2 | 26127521853 | $1.18 | Shop at ECS Tuning | ||||
| 10 | Centering sleeve hard | 1 | 26117562574 | Shop at ECS Tuning | ||||||
| 11 | Hexagon nut with collar | M12X1,5-10 ZNS3 | 3 | 33326760368 | Shop at ECS Tuning | |||||
| 12 | Torx screw | M12X1,5X55-ZNS3 | 3 | 26118607971 | Shop at ECS Tuning | |||||
| 13 | Repair kit recessed nut blue | M39X1,5X20 | 1 | 33127607158 | Shop at ECS Tuning | |||||
| 14 | Grease Optitemp HT 1 LF | 50G | 1 | 11/2024 | 83230417754 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G12 LCI 730Ld Hardy couplings/center bearing/inner nut?
- This technical diagram illustrates the Hardy couplings/center bearing/inner nut within the Drive Shaft group for the 7 Series G12 LCI 730Ld produced during 2021. It provides a detailed exploded view of the components, identifying key parts such as the Universal joint (Part #26117546426).
- Which models use the hardware listed in this Hardy couplings/center bearing/inner nut?
- The hardware and components featured in the Hardy couplings/center bearing/inner nut are specific to the 7 Series G12 LCI 730Ld produced during 2021. These technical specifications ensure that parts like the Universal joint (26117546426) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hardy couplings/center bearing/inner nut assembly?
- Each item in the Hardy couplings/center bearing/inner nut corresponds to the numbered list below the illustration. For the 7 Series G12 LCI 730Ld, you can identify the Universal joint by locating its position on the schematic, which then links to the official BMW part number 26117546426 for the Drive Shaft section.
