Drive shaft, single components for BMW 2 Series F44 Gran Coupé M235iX (2024)

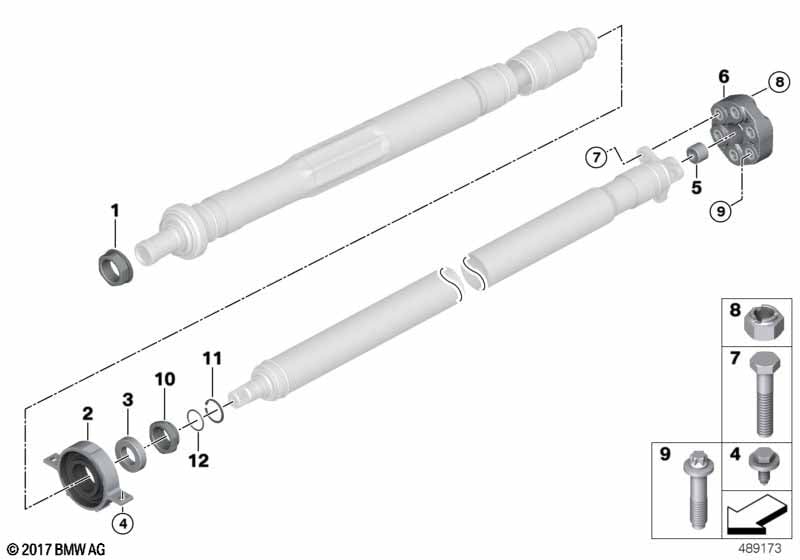

This Drive shaft, single components technical drawing provides a detailed breakdown of the assembly for the 2 Series F44 Gran Coupé M235iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Repair kit, output drive | 1 | 26118681576 | Shop at ECS Tuning | ||||||
| 02 | Center bearing, driveshaft | WDMR 30 | 1 | 26118837226 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Collar nut | 1 | 26118605072 | Shop at ECS Tuning | ||||||
| -- | Lock Ring | 1 | 26118606515 | Shop at ECS Tuning | ||||||
| -- | Gasket ring | 25,12X1,78 | 1 | 26118609798 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M8X22-8.8-ZNS3 | 2 | 22326760945 | $1.08 | Shop at ECS Tuning | ||||
| 05 | Centering sleeve hard | 1 | 26117526806 | $28.35 | Shop at ECS Tuning | |||||
| 06 | Universal joint | LK=78MM/D=111MM | 1 | 26118689360 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M12X1,5X58-ZNS3 | 3 | 26117523709 | $2.73 | Shop at ECS Tuning | ||||
| 08 | Self-locking hex nut | M12X1,5-10-ZNS3 | 3 | 26127536563 | $1.00 | Shop at ECS Tuning | ||||
| 09 | ASA-Bolt | M12X1.5X47 | 3 | 26117621344 | Shop at ECS Tuning | |||||
| 10 | Collar nut | 1 | 26118605072 | Shop at ECS Tuning | ||||||
| 11 | Lock Ring | 1 | 26118606515 | Shop at ECS Tuning | ||||||
| 12 | Gasket ring | 25,12X1,78 | 1 | 26118609798 | Shop at ECS Tuning | |||||
