Driveshaft / recessed nut for BMW 4 Series G22 Coupé 430i (2024)

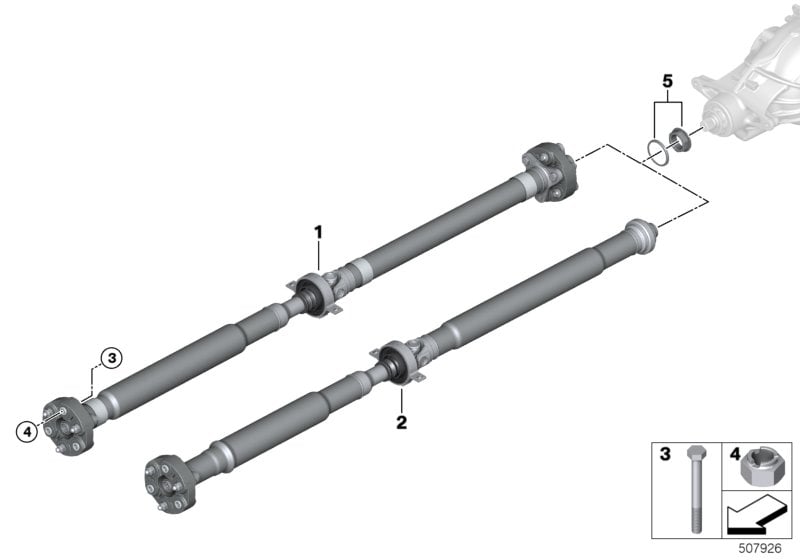

This Driveshaft / recessed nut technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé 430i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M sport differential |
S2T4A=No |
|||||||||
| 01 | Prop shaft | L=1525,2MM | 1 | 26108848018 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair kit recessed nut blue | M39X1,5X20 | 1 | 33127607158 | Shop at ECS Tuning | |||||
| For vehicles with M sport differential |
S2T4A=Yes |
|||||||||
| 01 | Prop shaft | L=1528,9MM | 1 | 26108848019 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair kit recessed nut blue | M39X1,5X20 | 1 | 33127607158 | Shop at ECS Tuning | |||||
| 02 | Not offered by BMW | 1 | 84210300311 | ENDED | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M12X1,5X58-ZNS3 | 3 | 26117523709 | $2.73 | Shop at ECS Tuning | ||||
| 04 | Self-locking hex nut | M12X1,5-10-ZNS3 | 3 | 26127536563 | $1.00 | Shop at ECS Tuning | ||||
| 05 | Repair kit recessed nut blue | M39X1,5X20 | 1 | 33127607158 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
- ENDED = the part has been discontinued (no longer available).
