Drive shaft, single components for BMW 2 Series G87 M2 M2 (2024)

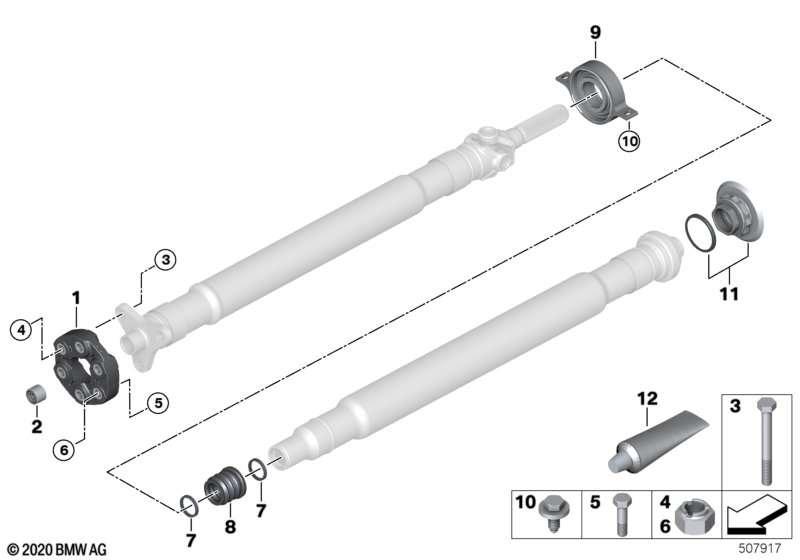

This Drive shaft, single components technical drawing provides a detailed breakdown of the assembly for the 2 Series G87 M2 M2. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Universal joint | LK=105MM | 1 | 26119846038 | Shop at ECS Tuning | |||||
| 02 | Centering sleeve hard | 1 | 26117526806 | $28.35 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M12X1,5X64-ZNS3 | 3 | 26117540333 | $2.90 | Shop at ECS Tuning | ||||
| 04 | Hexagon nut with collar | M12X1,5-10 ZNS3 | 3 | 33326760368 | Shop at ECS Tuning | |||||
| 05 | Hexagon screw with flange | M12X1,5X67-10.9 | 3 | 07119906489 | $2.42 | Shop at ECS Tuning | ||||
| 06 | Self-locking hex nut | M12X1,5-10-ZNS3 | 3 | 26127536563 | $1.00 | Shop at ECS Tuning | ||||
| 07 | Damper ring | D=38/D=33 | 2 | 26117581110 | Shop at ECS Tuning | |||||
| 08 | Rubber boot, center bearing | 1 | 11/2024 | 26117526628 | $8.45 | Shop at ECS Tuning | ||||
| 08 | Rubber boot, center bearing | 1 | 26118881330 | Shop at ECS Tuning | ||||||
| 09 | Central mount aluminum | 1 | 26118848466 | Shop at ECS Tuning | ||||||
| 10 | Hex bolt with washer | M8X24-8.8-ZNS3 | 2 | 26127521853 | $1.18 | Shop at ECS Tuning | ||||
| 11 | Repair kit recessed nut blue | M39X1,5X20 | 1 | 33127607158 | Shop at ECS Tuning | |||||
| 12 | Grease Optitemp HT 1 LF | 50G | 1 | 11/2024 | 83230417754 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series G87 M2 M2 Drive shaft, single components?
- This technical diagram illustrates the Drive shaft, single components within the Drive Shaft group for the 2 Series G87 M2 M2 produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Universal joint (Part #26119846038).
- Which models use the hardware listed in this Drive shaft, single components?
- The hardware and components featured in the Drive shaft, single components are specific to the 2 Series G87 M2 M2 produced during 2024. These technical specifications ensure that parts like the Universal joint (26119846038) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Drive shaft, single components assembly?
- Each item in the Drive shaft, single components corresponds to the numbered list below the illustration. For the 2 Series G87 M2 M2, you can identify the Universal joint by locating its position on the schematic, which then links to the official BMW part number 26119846038 for the Drive Shaft section.
