Transfer case NV 124 for BMW 3 Series E46 325xi (2005)

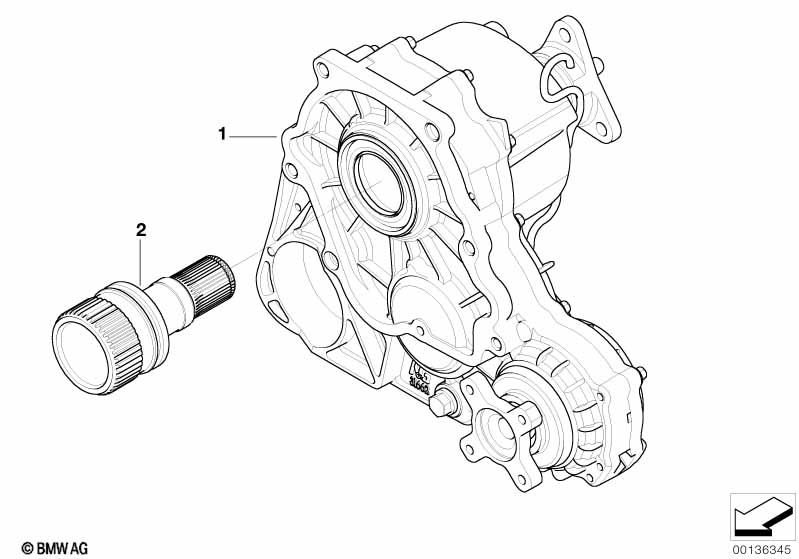

This Transfer case NV 124 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Transfer box | NV 124 | 1 | 03/2003 | 27107530812 | $2272.29 | +core | Shop at ECS Tuning | ||
| For vehicles with Manual Transmission |
=Yes |
|||||||||
| 02 | Adapter shaft | 1 | 27107525789 | $490.00 | +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | O-ring | 39,0X2,25 | 1 | 27107536962 | $3.75 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325xi Transfer case NV 124?
- This technical diagram illustrates the Transfer case NV 124 within the Transfer box / e-vehicle transmission group for the 3 Series E46 325xi produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Transfer box (Part #27107530812).
- Which models use the hardware listed in this Transfer case NV 124?
- The hardware and components featured in the Transfer case NV 124 are specific to the 3 Series E46 325xi produced during 2005. These technical specifications ensure that parts like the Transfer box (27107530812) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Transfer case NV 124 assembly?
- Each item in the Transfer case NV 124 corresponds to the numbered list below the illustration. For the 3 Series E46 325xi, you can identify the Transfer box by locating its position on the schematic, which then links to the official BMW part number 27107530812 for the Transfer box / e-vehicle transmission section.
