Gearbox mounting parts for BMW 3 Series E91 LCI 325xi (2012)

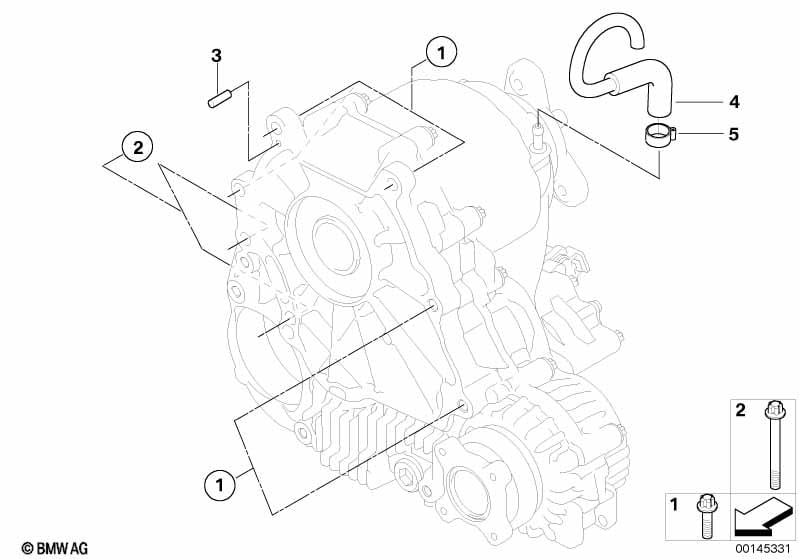

This Gearbox mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ASA-Bolt | M10X35-8.8-ZNS3 | 4 | 23001434694 | $1.15 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 01 | ASA-Bolt | M10X35-8.8-ZNS3 | 5 | 23001434694 | $1.15 | Shop at ECS Tuning | ||||
| 02 | ASA-Bolt | M10X80-8.8-ZNS3 | 2 | 27107534238 | $2.79 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 02 | ASA-Bolt | M10X80-8.8-ZNS3 | 1 | 27107534238 | $2.79 | Shop at ECS Tuning | ||||
| 03 | Dowel pin | 6M6X16 | 1 | 24101219418 | $1.38 | Shop at ECS Tuning | ||||
| 04 | Vent pipe | 1 | 27107537060 | $15.02 | Shop at ECS Tuning | |||||
| 05 | Hose clamp | 13,1-15,3 | 1 | 16121176918 | $1.76 | Shop at ECS Tuning | ||||
