Single parts f transfer case ATC 300 for BMW 3 Series E91 LCI 320xd (2012)

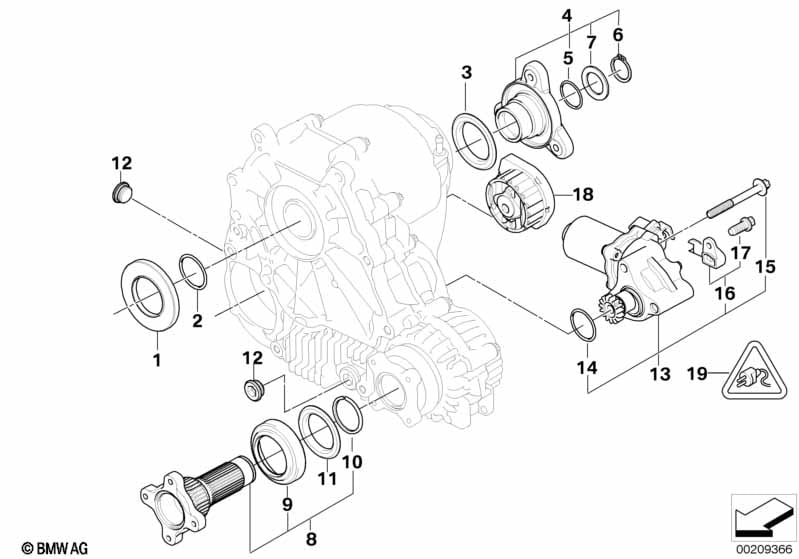

This Single parts f transfer case ATC 300 technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 320xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shaft seal | 49,6X90X8 | 1 | 27107539262 | $16.37 | Shop at ECS Tuning | ||||
| 02 | O-ring | 39X2 | 1 | 27107609202 | Shop at ECS Tuning | |||||
| 03 | Shaft seal | 52X75X8/12 | 1 | 27107546667 | $16.37 | Shop at ECS Tuning | ||||
| 04 | Output flange set | 1 | 27107548116 | $303.60 | Shop at ECS Tuning | |||||
| 05 | O-ring | 31X2,5 | 1 | 27107537631 | $1.71 | Shop at ECS Tuning | ||||
| 06 | Lock Ring | 28X2 | 1 | 27107539525 | $0.73 | Shop at ECS Tuning | ||||
| 07 | Spacer rings set | 1 | 27107546670 | $141.19 | Shop at ECS Tuning | |||||
| 08 | Output flange set, front | 1 | 27107548115 | $244.69 | Shop at ECS Tuning | |||||
| 09 | Dustcover plate | 1 | 27107537665 | $7.84 | Shop at ECS Tuning | |||||
| 10 | Snap ring | 1 | 27107546679 | $0.80 | Shop at ECS Tuning | |||||
| 11 | Shaft seal | 1 | 27107539266 | $16.37 | Shop at ECS Tuning | |||||
| 12 | Screw plug with O-ring | M22X1,5-ZNS3 | 2 | 33117525064 | $3.91 | Shop at ECS Tuning | ||||
| 13 | Set positioning motor | 1 | 27107546671 | $770.98 | Shop at ECS Tuning | |||||
| 13 | Set positioning motor | 1 | 27102449712 | ENDED | Shop at ECS Tuning | |||||
| 14 | O-ring | 32X2,5 | 1 | 27107548348 | $5.96 | Shop at ECS Tuning | ||||
| 15 | Flange screw | M8X70-8.8-ZNS3 | 3 | 27107546672 | $8.59 | Shop at ECS Tuning | ||||
| 16 | Set, classification resistor | 1 | 27107557345 | $33.24 | Shop at ECS Tuning | |||||
| 17 | ISA screw | M5X12 | 1 | 13547682039 | $2.25 | Shop at ECS Tuning | ||||
| 18 | Transmission bearing set | 1 | 22313422956 | $59.25 | Shop at ECS Tuning | |||||
| 19 | Socket housing | 1 | 61138377082 | $0.78 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Double flat spring contact with cable | 1,0 MM² | 8 | 61130007439 | $2.70 | Shop at ECS Tuning | ||||
| -- | Double leaf spring contact | 2,5-4,0MM² | 8 | 61131370693 | $0.68 | ENDED | Shop at ECS Tuning | |||
| -- | Double leaf spring 1 - 2.5 qmm | 8 | 61131382543 | $0.57 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
