Transfer case ATC 13 for BMW XM G09 XM (2025)

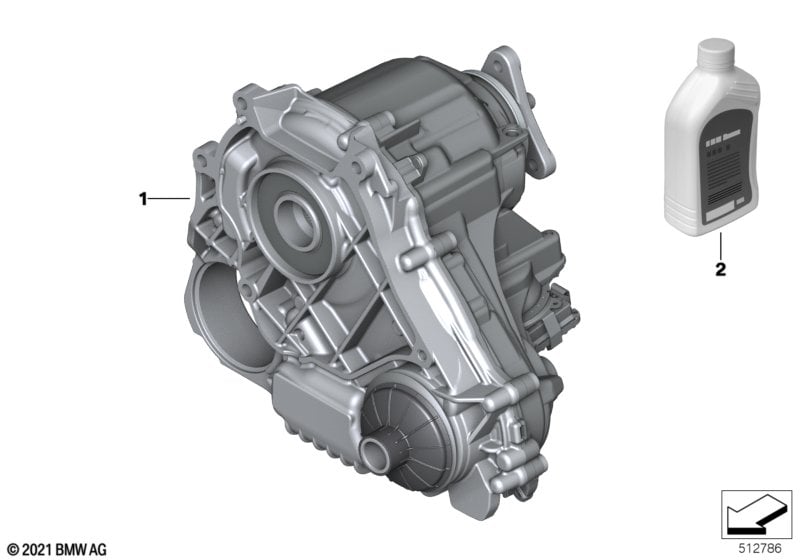

This Transfer case ATC 13 technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention: In the event of a warranty case, leave the transmission oil in the intermediate transmission for the purposes of possible analysis. After the agreed-upon storage time, drain and dispose appropriately! |
|||||||||
| 01 | RP transfer box | ATC13 | 1 | 27105A5AA22 | Shop at ECS Tuning | |||||
| 02 | Dtf 1 | 1L | X | 83225A4F016 | Shop at ECS Tuning | |||||
