Transfer box, separate components ATC 14 for BMW 5 Series G90 M5 M5 (2025)

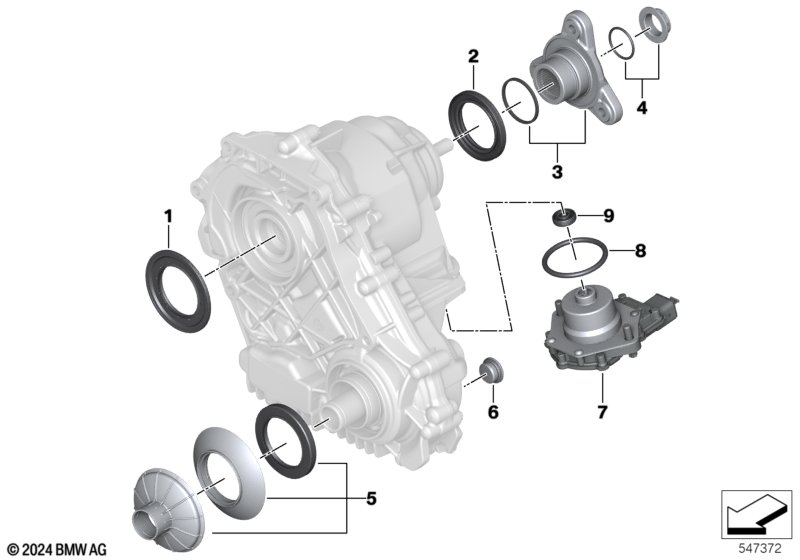

This Transfer box, separate components ATC 14 technical drawing provides a detailed breakdown of the assembly for the 5 Series G90 M5 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Radial shaft seal | 55X90X6,5/7,5 | 1 | 07148841758 | Shop at ECS Tuning | |||||
| 02 | Shaft seal | 52X75X8/12 | 1 | 27108642593 | Shop at ECS Tuning | |||||
| 03 | Output flange set | ATC14-1 LK105 | 1 | 27105A29CF0 | Shop at ECS Tuning | |||||
| 04 | Kit | ATC14-1 | 1 | 27105A43710 | Shop at ECS Tuning | |||||
| 05 | Set of centrifugal discs | ATC13 | 1 | 27108686654 | Shop at ECS Tuning | |||||
| 06 | Screw plug with O-ring | M22X1,5-ZNS3 | 2 | 33117525064 | $3.91 | Shop at ECS Tuning | ||||
| 07 | Set longitudinal torque module | ATC13-2 | 1 | 27605A1F8A0 | Shop at ECS Tuning | |||||
| 08 | O-ring | 57X5,25 | 1 | 07145A12CF3 | Shop at ECS Tuning | |||||
| 09 | Shaft seal | 7.8X21X6 | 1 | 07145A12CE7 | Shop at ECS Tuning |
