Attachment / suspension 7DCT300 for BMW MINI Countryman F60 LCI Cooper (2023)

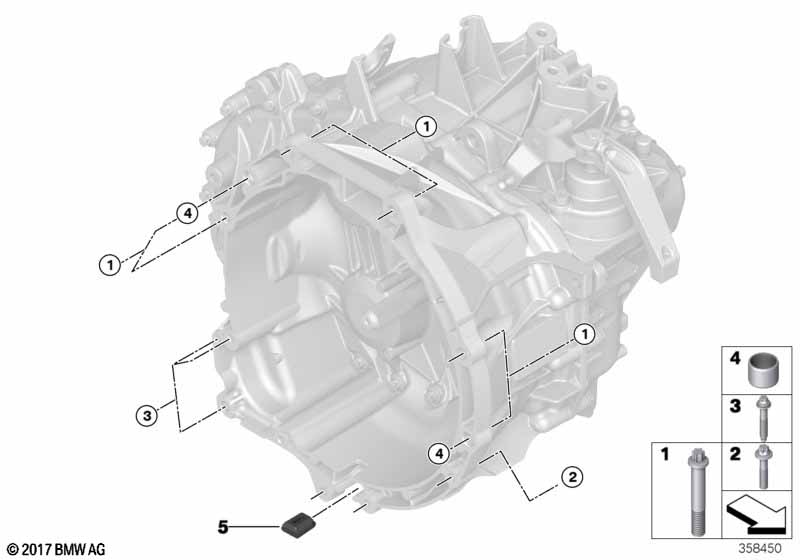

This Attachment / suspension 7DCT300 technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 LCI Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Sport transmission w/ dual-plate clutch or Steptronic with twin-clutch gearbox |
S2TCA=Yes S2TFA=Yes |
||||||||
| 01 | Torx bolt | M12X75 | 6 | 23001222893 | $1.62 | Shop at ECS Tuning | ||||
| 02 | Star-socket screw | BM8X40-8.8-ZNNI | 4 | 07119907836 | Shop at ECS Tuning | |||||
| 03 | Screw | BM8X45 | 3 | 12319908469 | Shop at ECS Tuning | |||||
| 04 | Dowel | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 05 | Cap | 1 | 23008612907 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Countryman F60 LCI Cooper Attachment / suspension 7DCT300?
- This technical diagram illustrates the Attachment / suspension 7DCT300 within the Dual-clutch gearbox group for the MINI Countryman F60 LCI Cooper produced during 2023. It provides a detailed exploded view of the components, identifying key parts such as the Torx bolt (Part #23001222893).
- Which models use the hardware listed in this Attachment / suspension 7DCT300?
- The hardware and components featured in the Attachment / suspension 7DCT300 are specific to the MINI Countryman F60 LCI Cooper produced during 2023. These technical specifications ensure that parts like the Torx bolt (23001222893) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Attachment / suspension 7DCT300 assembly?
- Each item in the Attachment / suspension 7DCT300 corresponds to the numbered list below the illustration. For the MINI Countryman F60 LCI Cooper, you can identify the Torx bolt by locating its position on the schematic, which then links to the official BMW part number 23001222893 for the Dual-clutch gearbox section.
