Double clutch 7DCT300 for BMW MINI F56 One (2021)

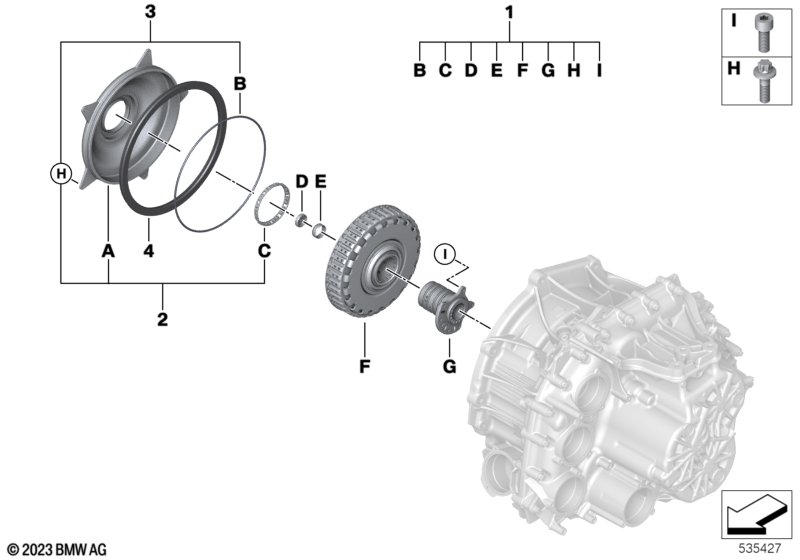

This Double clutch 7DCT300 technical drawing provides a detailed breakdown of the assembly for the MINI F56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Sport transmission w/ dual-plate clutch or Steptronic with twin-clutch gearbox |
S2TCA=Yes S2TFA=Yes |
||||||||
| 01 | Dual clutch | 7DCT300 | 1 | 28005A43602 | Shop at ECS Tuning | |||||
| 02 | Clutch cover | 1 | 28005A43605 | Shop at ECS Tuning | ||||||
| 03 | Mounting-kit | 7DCT300 | 1 | 03/2021 | 28008486563 | ENDED | Shop at ECS Tuning | |||
| 03 | Mounting-kit | 1 | 28005A43613 | Shop at ECS Tuning | ||||||
| 04 | Radiator cap | 7DCT300/400 | 1 | 28008699970 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI F56 One Double clutch 7DCT300?
- This technical diagram illustrates the Double clutch 7DCT300 within the Dual-clutch gearbox group for the MINI F56 One produced during 2021. It provides a detailed exploded view of the components, identifying key parts such as the Dual clutch (Part #28005A43602).
- Which models use the hardware listed in this Double clutch 7DCT300?
- The hardware and components featured in the Double clutch 7DCT300 are specific to the MINI F56 One produced during 2021. These technical specifications ensure that parts like the Dual clutch (28005A43602) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Double clutch 7DCT300 assembly?
- Each item in the Double clutch 7DCT300 corresponds to the numbered list below the illustration. For the MINI F56 One, you can identify the Dual clutch by locating its position on the schematic, which then links to the official BMW part number 28005A43602 for the Dual-clutch gearbox section.
