Attachment/hanger assembly 7DCT300TUE for BMW 2 Series F78 Gran Coupé 225L (2025)

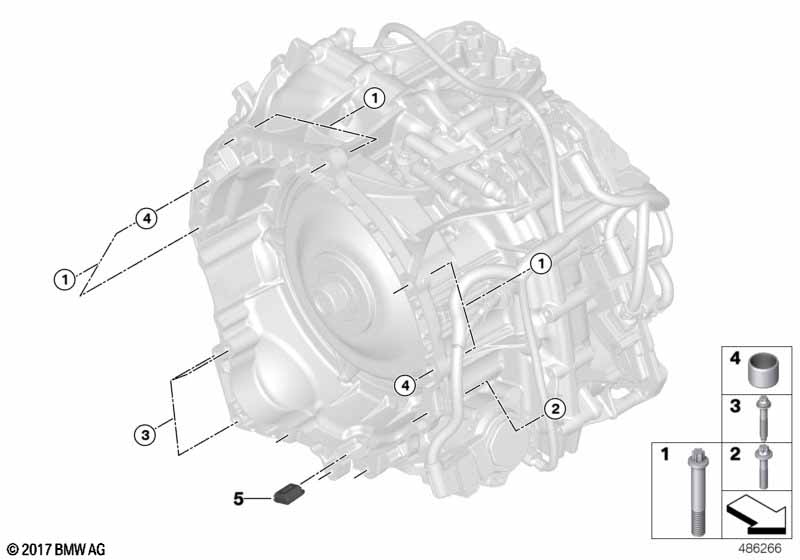

This Attachment/hanger assembly 7DCT300TUE technical drawing provides a detailed breakdown of the assembly for the 2 Series F78 Gran Coupé 225L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Torx bolt | M12X75 | 6 | 23001222893 | $1.62 | Shop at ECS Tuning | ||||
| 02 | Star-socket screw | BM8X40-8.8-ZNNI | 4 | 07119907836 | Shop at ECS Tuning | |||||
| 03 | Screw | BM8X45 | 3 | 12319908469 | Shop at ECS Tuning | |||||
| 04 | Dowel | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 05 | Cap | 1 | 23008612907 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F78 Gran Coupé 225L Attachment/hanger assembly 7DCT300TUE?
- This technical diagram illustrates the Attachment/hanger assembly 7DCT300TUE within the Dual-clutch gearbox group for the 2 Series F78 Gran Coupé 225L produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Torx bolt (Part #23001222893).
- Which models use the hardware listed in this Attachment/hanger assembly 7DCT300TUE?
- The hardware and components featured in the Attachment/hanger assembly 7DCT300TUE are specific to the 2 Series F78 Gran Coupé 225L produced during 2025. These technical specifications ensure that parts like the Torx bolt (23001222893) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Attachment/hanger assembly 7DCT300TUE assembly?
- Each item in the Attachment/hanger assembly 7DCT300TUE corresponds to the numbered list below the illustration. For the 2 Series F78 Gran Coupé 225L, you can identify the Torx bolt by locating its position on the schematic, which then links to the official BMW part number 23001222893 for the Dual-clutch gearbox section.
