Transmission single parts 7DCT300TUE for BMW 2 Series U06 Active Tourer 230eX (2025)

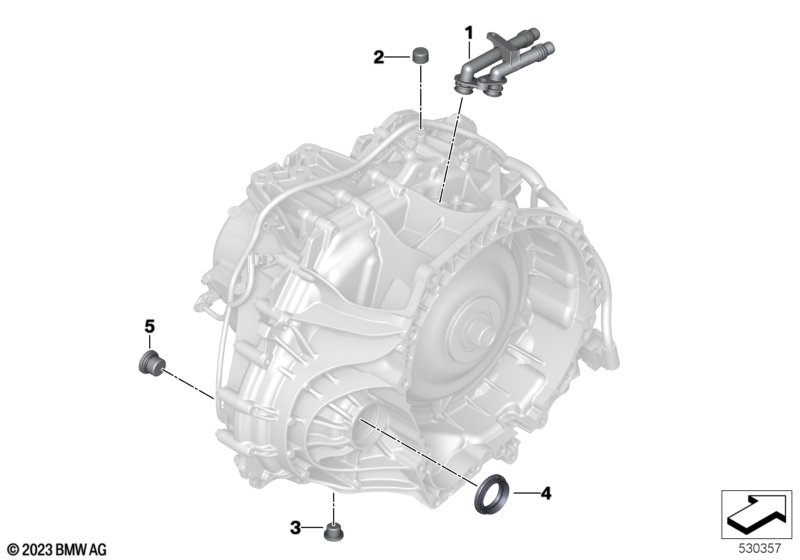

This Transmission single parts 7DCT300TUE technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 230eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Service kit coolant connection | GD7/GN7QXXXX | 1 | 28005A40FB3 | Shop at ECS Tuning | |||||
| 02 | Breather cap | 1 | 23137507652 | $1.82 | Shop at ECS Tuning | |||||
| 03 | Set, threaded oil plug | GD7/GN7QXXXX | 1 | 28005A41030 | Shop at ECS Tuning | |||||
| 04 | Shaft seal, output shaft | 2 | 23118651159 | Shop at ECS Tuning | ||||||
| 05 | Oil filler plug | 1 | 28005A7A379 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series U06 Active Tourer 230eX Transmission single parts 7DCT300TUE?
- This technical diagram illustrates the Transmission single parts 7DCT300TUE within the Dual-clutch gearbox group for the 2 Series U06 Active Tourer 230eX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Service kit coolant connection (Part #28005A40FB3).
- Which models use the hardware listed in this Transmission single parts 7DCT300TUE?
- The hardware and components featured in the Transmission single parts 7DCT300TUE are specific to the 2 Series U06 Active Tourer 230eX produced during 2025. These technical specifications ensure that parts like the Service kit coolant connection (28005A40FB3) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Transmission single parts 7DCT300TUE assembly?
- Each item in the Transmission single parts 7DCT300TUE corresponds to the numbered list below the illustration. For the 2 Series U06 Active Tourer 230eX, you can identify the Service kit coolant connection by locating its position on the schematic, which then links to the official BMW part number 28005A40FB3 for the Dual-clutch gearbox section.
