Double clutch 7DCT/HDT400/HDT400M for BMW 2 Series U06 Active Tourer 220d (2025)

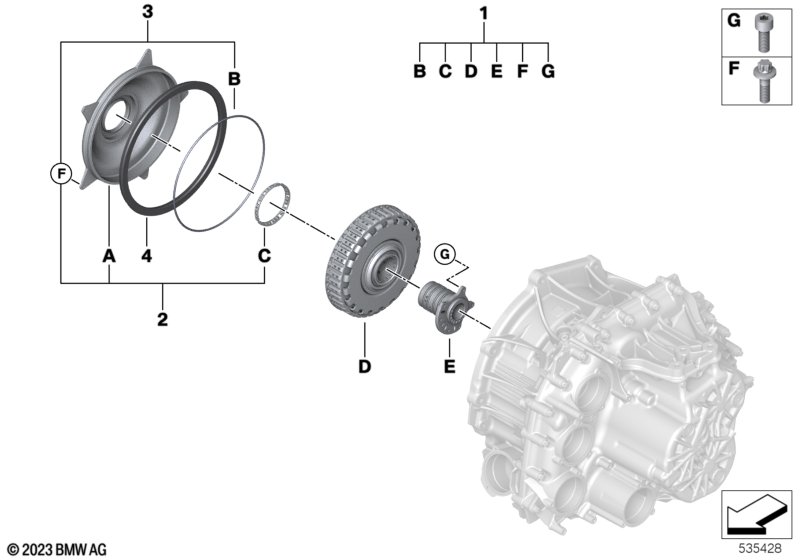

This Double clutch 7DCT/HDT400/HDT400M technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Dual clutch | 1 | 28005A48965 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Kit flow limiter seat valve | 1 | 28005A4A139 | Shop at ECS Tuning | ||||||
| 02 | Clutch cover | 1 | 28005A4A149 | Shop at ECS Tuning | ||||||
| 03 | Mounting-kit | 1 | 28005A43613 | Shop at ECS Tuning | ||||||
| 04 | Radiator cap | 7DCT300/400 | 1 | 28008699970 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series U06 Active Tourer 220d Double clutch 7DCT/HDT400/HDT400M?
- This technical diagram illustrates the Double clutch 7DCT/HDT400/HDT400M within the Dual-clutch gearbox group for the 2 Series U06 Active Tourer 220d produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Dual clutch (Part #28005A48965).
- Which models use the hardware listed in this Double clutch 7DCT/HDT400/HDT400M?
- The hardware and components featured in the Double clutch 7DCT/HDT400/HDT400M are specific to the 2 Series U06 Active Tourer 220d produced during 2025. These technical specifications ensure that parts like the Dual clutch (28005A48965) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Double clutch 7DCT/HDT400/HDT400M assembly?
- Each item in the Double clutch 7DCT/HDT400/HDT400M corresponds to the numbered list below the illustration. For the 2 Series U06 Active Tourer 220d, you can identify the Dual clutch by locating its position on the schematic, which then links to the official BMW part number 28005A48965 for the Dual-clutch gearbox section.
