Transmission single parts 7DCT400 for BMW MINI Cabrio F67 JCW (2025)

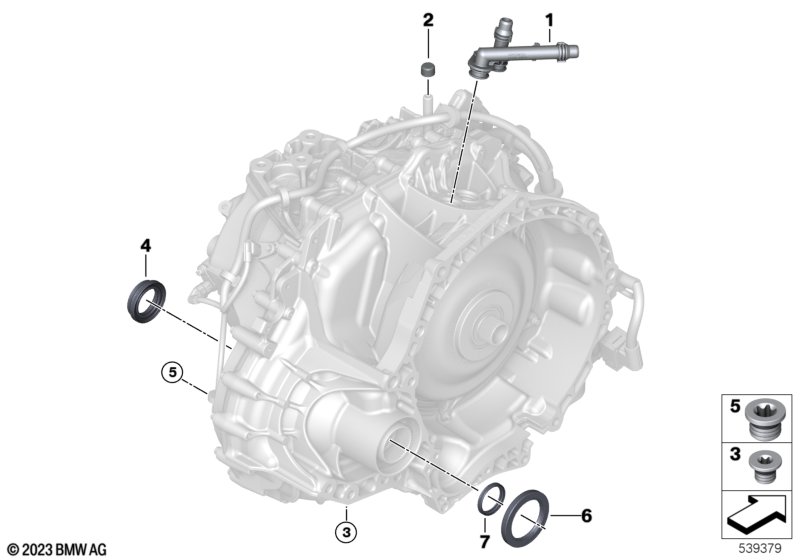

This Transmission single parts 7DCT400 technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F67 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Service kit coolant connection | GD7/GN7QXXXX | 1 | 28005A40FB3 | Shop at ECS Tuning | |||||
| 02 | Breather cap | 1 | 23137507652 | $1.82 | Shop at ECS Tuning | |||||
| 03 | Set, threaded oil plug | GD7/GN7QXXXX | 1 | 28005A41030 | Shop at ECS Tuning | |||||
| 04 | Shaft seal, output shaft | 2 | 23118651159 | Shop at ECS Tuning | ||||||
| 05 | Oil filler plug | 1 | 28005A7A379 | Shop at ECS Tuning | ||||||
| 06 | Shaft seal, driven shaft, outer | D=53MM | 1 | 28005A7A380 | NoS | Shop at ECS Tuning | ||||
| 07 | Shaft seal, driven shaft, inner | D=34MM | 1 | 28005B31BA6 | NoS | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
