Front axle support/wishbone for BMW 3 Series E21 318i (1982)

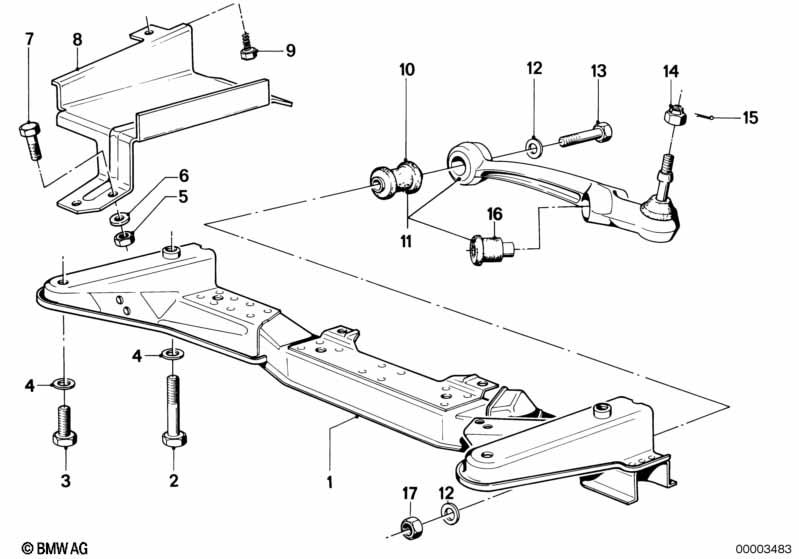

This Front axle support/wishbone technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front axle support | 1 | 10/1978 | 31111121473 | $357.83 | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M10X100 | 2 | 10/1978 | 07119912708 | $2.68 | Shop at ECS Tuning | |||
| 03 | Hex bolt | M10X28 | 2 | 10/1978 | 07119913836 | $0.63 | Shop at ECS Tuning | |||
| 04 | Washer | A10,5X22 | 4 | 10/1978 | 31111114348 | $0.67 | Shop at ECS Tuning | |||
| 05 | Self-locking hex nut | M8-8-ZNNI SI | 1 | 10/1978 | 07129906196 | $1.60 | Shop at ECS Tuning | |||
| 06 | Washer | 8,4X16X1,6-ZNNV | 1 | 10/1978 | 07119907030 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M8X18-8.8-ZNS3 | 1 | 10/1978 | 07119904146 | $0.65 | Shop at ECS Tuning | |||
| For vehicles with National version Australia and Sweden version |
L810A=Yes =Yes |
|||||||||
| 08 | Heat resistant plate | 1 | 10/1978 | 32111123922 | ENDED | Shop at ECS Tuning | ||||
| 09 | Hex head screw | ST6,3X13-C-Z1 | 1 | 10/1978 | 07119916960 | $0.24 | Shop at ECS Tuning | |||
| 10 | Rubber Mounting | 2 | 10/1978 | 31121119260 | $11.32 | Shop at ECS Tuning | ||||
| 11 | Wishbone, left | 1 | 10/1978 | 31121123025 | $169.07 | ENDED | Shop at ECS Tuning | |||
| 11 | Wishbone, right | 1 | 10/1978 | 31121123026 | $169.07 | ENDED | Shop at ECS Tuning | |||
| 12 | Washer | A13/HV-ZNS | 4 | 10/1978 | 12/1983 | 07119901766 | $0.30 | ENDED | Shop at ECS Tuning | |
| 12 | Washer | 12-300 HV-ZNS3 | 4 | 10/1978 | 07119904119 | $0.25 | Shop at ECS Tuning | |||
| 13 | Hex bolt | M12X1,5X80 | 2 | 10/1978 | 07119914660 | $2.09 | Shop at ECS Tuning | |||
| 14 | Crown nut | M12 | 2 | 10/1978 | 31122624120 | $2.05 | ENDED | Shop at ECS Tuning | ||
| 15 | Split pin | 3,2X18 | 2 | 10/1978 | 07119945193 | $0.09 | Shop at ECS Tuning | |||
| 16 | Rubber Mounting | 2 | 10/1978 | 31121123038 | ENDED | Shop at ECS Tuning | ||||
| 17 | Self-locking hex nut | M12X1,5-10-PHR | 2 | 10/1978 | 07129900047 | $0.62 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
