Front axle support/wishbone for BMW 5 Series E12 528 (1976)

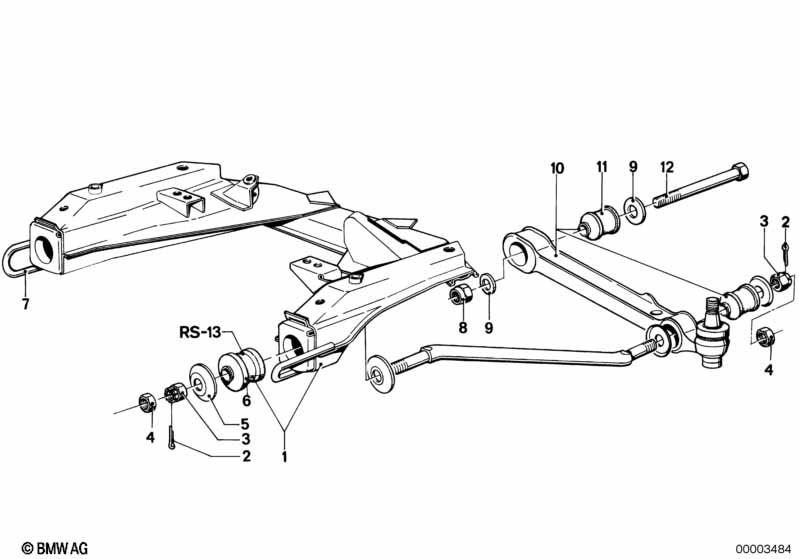

This Front axle support/wishbone technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front axle support | 1 | 31111112842 | $1275.79 | Shop at ECS Tuning | |||||
| 04 | Self-locking hex nut | M14X1,5-05 ZNS3 | 4 | 31106774714 | $1.12 | Shop at ECS Tuning | ||||
| 05 | Washer | 2 | 31121108294 | $5.53 | ENDED | Shop at ECS Tuning | ||||
| 06 | Rubber Mounting | 2 | 31128881082 | Shop at ECS Tuning | ||||||

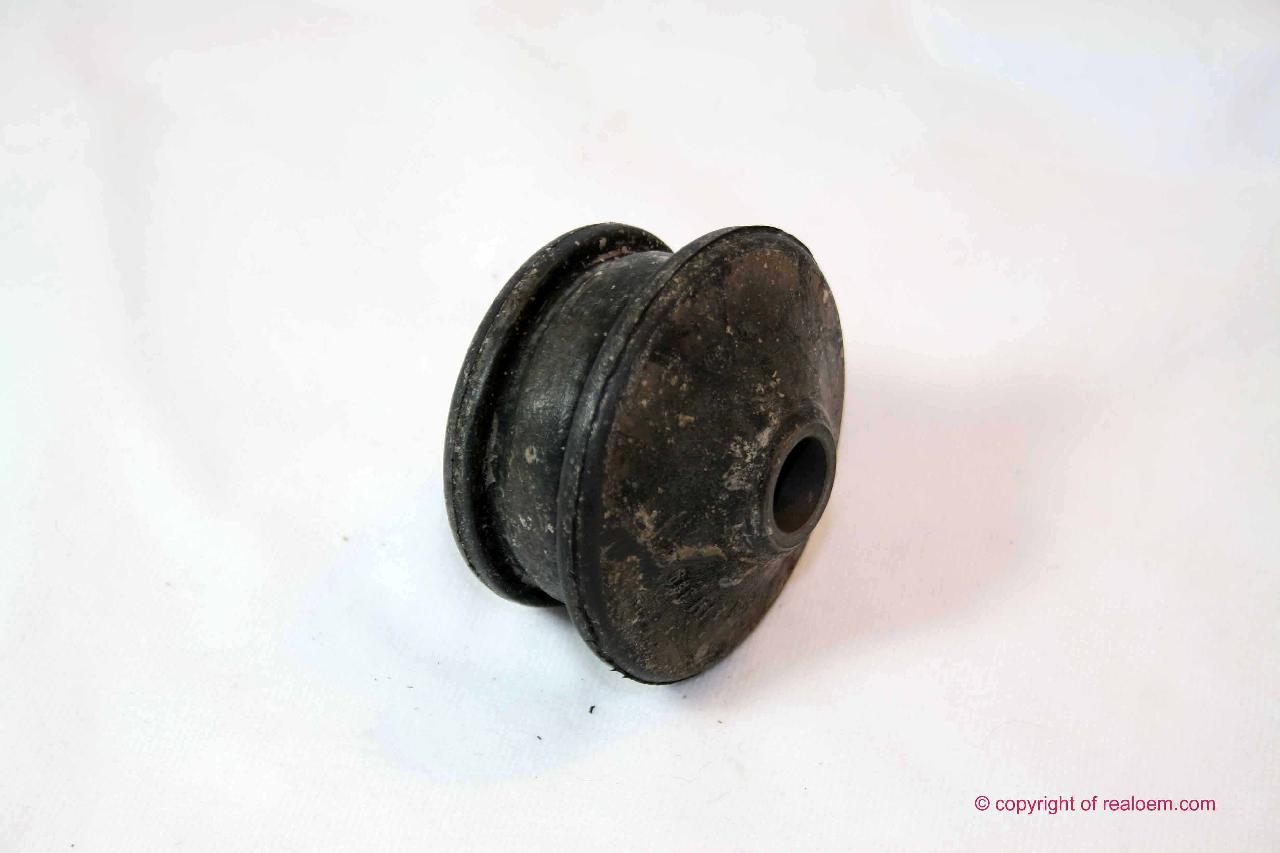

| 06 | Rubber Mounting | MOTORSPORT | 2 | 31132202395 | $47.90 | ENDED | Shop at ECS Tuning | |||
| 07 | Towing bracket | 2 | 31111108442 | $5.66 | ENDED | Shop at ECS Tuning | ||||
| 08 | Self-locking hex nut | M12X1,5-10-PHR | 2 | 07129900047 | $0.62 | Shop at ECS Tuning | ||||
| 09 | Washer | 12-300 HV-ZNS3 | 4 | 07119904119 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Wishbone, left | 1 | 31121108388 | ENDED | Shop at ECS Tuning | |||||
| 10 | Wishbone, right | 1 | 31121108389 | ENDED | Shop at ECS Tuning | |||||
| 11 | Rubber Mounting | 2 | 31121119260 | $11.32 | Shop at ECS Tuning | |||||
| 12 | Hex bolt | M12X1,5X80 | 2 | 07119914660 | $2.09 | Shop at ECS Tuning | ||||
| 13 | Repair kit rubber mounting | 1 | 11/1978 | 31121123553 | ENDED | Shop at ECS Tuning | ||||
| 13 | Rubber Mounting | 1 | 31128881082 | Shop at ECS Tuning |
