Front axle support/wishbone for BMW 3 Series E21 320i (1979)

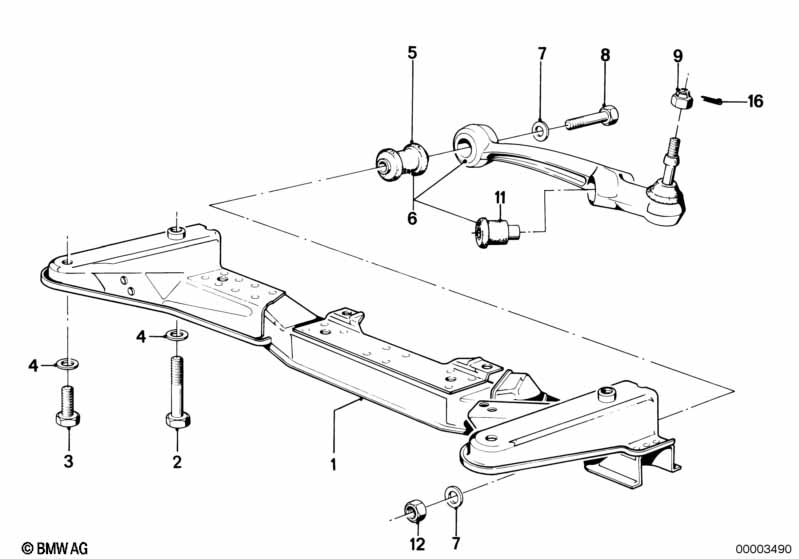

This Front axle support/wishbone technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front axle support | 1 | 10/1978 | 31111121473 | $357.83 | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M10X100 | 2 | 10/1978 | 07119912708 | $2.68 | Shop at ECS Tuning | |||
| 03 | Hex bolt | M10X28 | 2 | 10/1978 | 07119913836 | $0.63 | Shop at ECS Tuning | |||
| 04 | Washer | A10,5X22 | 4 | 10/1978 | 31111114348 | $0.67 | Shop at ECS Tuning | |||
| 05 | Rubber Mounting | 2 | 10/1978 | 31121119260 | $11.32 | Shop at ECS Tuning | ||||
| 06 | Wishbone, left | 1 | 10/1978 | 31121123025 | $169.07 | ENDED | Shop at ECS Tuning | |||
| 06 | Wishbone, right | 1 | 10/1978 | 31121123026 | $169.07 | ENDED | Shop at ECS Tuning | |||
| 07 | Washer | A13/HV-ZNS | 4 | 10/1978 | 12/1982 | 07119901766 | $0.30 | ENDED | Shop at ECS Tuning | |
| 07 | Washer | 12-300 HV-ZNS3 | 4 | 10/1978 | 07119904119 | $0.25 | Shop at ECS Tuning | |||
| 08 | Hex bolt | M12X1,5X80 | 2 | 10/1978 | 07119914660 | $2.09 | Shop at ECS Tuning | |||
| 09 | Crown nut | M12 | 2 | 10/1978 | 31122624120 | $2.05 | ENDED | Shop at ECS Tuning | ||
| 10 | Split pin | 3,2X18 | 2 | 10/1978 | 07119945193 | $0.09 | Shop at ECS Tuning | |||
| 11 | Rubber Mounting | 2 | 10/1978 | 31121123038 | ENDED | Shop at ECS Tuning | ||||
| 12 | Self-locking hex nut | M12X1,5-10-PHR | 2 | 10/1978 | 07129900047 | $0.62 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
