Front axle support for BMW 7 Series E23 735i (1982)

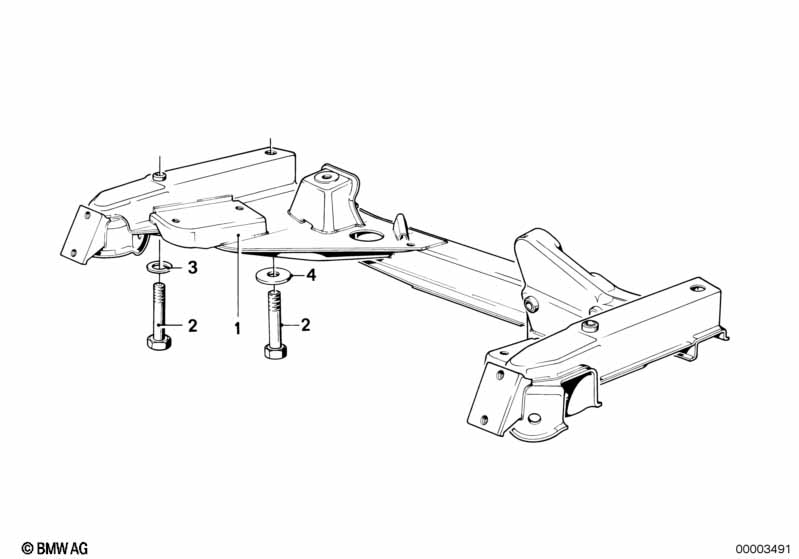

This Front axle support technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front axle support | 1 | 09/1979 | 31111123533 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M12X1,5X100 | 4 | 07119914678 | $2.35 | Shop at ECS Tuning | ||||
| 03 | Washer | 12-300 HV-ZNS3 | 2 | 07119904119 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Washer | 2 | 31111120428 | $0.57 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 735i Front axle support?
- This technical diagram illustrates the Front axle support within the Front Axle group for the 7 Series E23 735i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Front axle support (Part #31111123533).
- Which models use the hardware listed in this Front axle support?
- The hardware and components featured in the Front axle support are specific to the 7 Series E23 735i produced during 1982. These technical specifications ensure that parts like the Front axle support (31111123533) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front axle support assembly?
- Each item in the Front axle support corresponds to the numbered list below the illustration. For the 7 Series E23 735i, you can identify the Front axle support by locating its position on the schematic, which then links to the official BMW part number 31111123533 for the Front Axle section.
