Front axle support/wishbone for BMW 5 Series E28 M535i (1987)

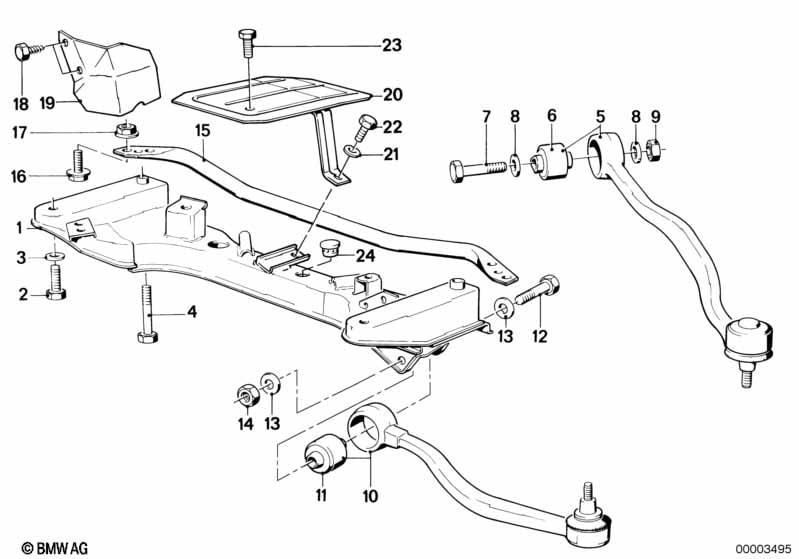

This Front axle support/wishbone technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front axle support | 1 | 31111140380 | $1031.88 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M10X35 | 2 | 07119913843 | $0.40 | Shop at ECS Tuning | ||||
| 03 | Washer | 4 | 31111124702 | $2.76 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M10X90 | 2 | 07119900237 | $1.98 | Shop at ECS Tuning | ||||
| 05 | Rod without rubber mounting left | 1 | 31121132353 | $211.84 | Shop at ECS Tuning | |||||
| 05 | Rod without rubber mounting right | 1 | 31121132354 | $211.84 | Shop at ECS Tuning | |||||
| 06 | Set rubber mounting | 1 | 31129058819 | $79.15 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M14X1,5X85 | 2 | 07119914829 | $5.82 | Shop at ECS Tuning | ||||
| 08 | Washer | 2 | 31112606010 | $0.98 | ENDED | Shop at ECS Tuning | ||||
| 09 | Self-locking hex nut | M14X1,5 05 ZNS3 | 2 | 31106769443 | $1.35 | Shop at ECS Tuning | ||||
| 10 | Wishbone, left, steel | 1 | 31121139991 | $179.73 | Shop at ECS Tuning | |||||
| 10 | Wishbone, right, steel | 1 | 31121139992 | $179.73 | Shop at ECS Tuning | |||||
| 11 | Steel rubber mounting | 2 | 31121124622 | $30.37 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| 12 | Hex bolt | M12X1,5X77 | 2 | 07119914684 | $2.09 | Shop at ECS Tuning | ||||
| 13 | Washer | 12-300 HV-ZNS3 | 2 | 07119904119 | $0.25 | Shop at ECS Tuning | ||||
| 14 | Self-locking hex nut | M12X1,5-10-PHR | 2 | 07129900047 | $0.62 | Shop at ECS Tuning | ||||
| 15 | Rod | 1 | 31121125662 | $58.68 | ENDED | Shop at ECS Tuning | ||||
| 16 | Collar screw | M10X27 10.9 | 4 | 31121125714 | $1.05 | ENDED | Shop at ECS Tuning | |||
| 17 | Self-locking collar nut | M10 | 4 | 31121125715 | $1.05 | ENDED | Shop at ECS Tuning | |||
| 18 | Hex head screw | ST6,3X19-C-Z2 | 1 | 07119916967 | $0.29 | Shop at ECS Tuning | ||||
| 19 | Heat resistant plate | 1 | 31112225218 | $14.73 | Shop at ECS Tuning | |||||
| 24 | Blind plug | D=20MM | 1 | 51711801066 | $0.23 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
