Stabilizer, front for BMW 3 Series E21 320i (1977)

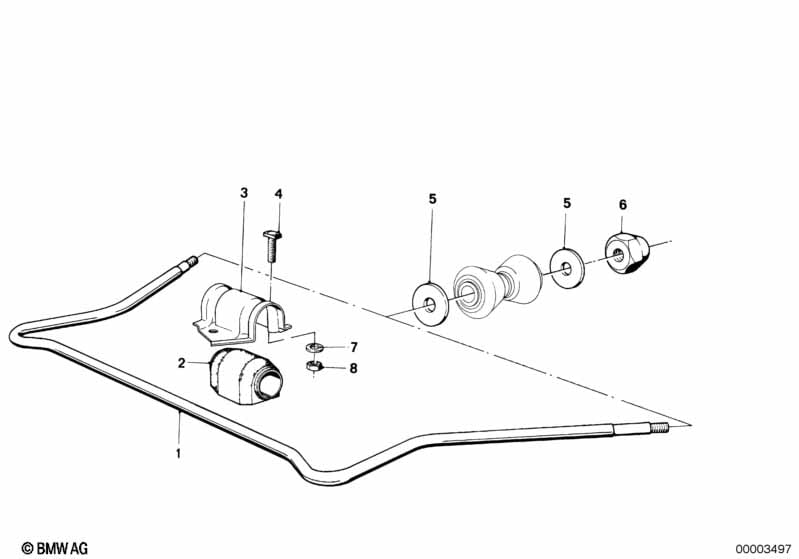

This Stabilizer, front technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stabilizer, front | D=23MM | 1 | 09/1977 | 31351115872 | $220.97 | ENDED | Shop at ECS Tuning | ||
| 02 | Rubber Mounting | D=23MM | 2 | 09/1977 | 31351115866 | $7.59 | Shop at ECS Tuning | |||
| 03 | Bracket left | 1 | 09/1978 | 31351114724 | $6.52 | ENDED | Shop at ECS Tuning | |||
| 03 | Bracket right | 1 | 09/1978 | 31351114725 | $6.52 | ENDED | Shop at ECS Tuning | |||
| 04 | Screw | 4 | 09/1978 | 31351116342 | $3.03 | ENDED | Shop at ECS Tuning | |||
| 05 | Washer | 4 | 09/1978 | 31351115805 | ENDED | Shop at ECS Tuning | ||||
| 06 | Self-locking hex nut | M14X1,5-05 ZNS3 | 2 | 09/1978 | 31106774714 | $1.12 | Shop at ECS Tuning | |||
| 07 | Washer | 10-200 HV-ZNNIV | 4 | 09/1978 | 07119904168 | $8.35 | Shop at ECS Tuning | |||
| 08 | Self-locking hex nut | M10-10 ZNS3 | 4 | 09/1978 | 33326768900 | $0.78 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320i Stabilizer, front?
- This technical diagram illustrates the Stabilizer, front within the Front Axle group for the 3 Series E21 320i produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Stabilizer, front (Part #31351115872).
- Which models use the hardware listed in this Stabilizer, front?
- The hardware and components featured in the Stabilizer, front are specific to the 3 Series E21 320i produced during 1977. These technical specifications ensure that parts like the Stabilizer, front (31351115872) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Stabilizer, front assembly?
- Each item in the Stabilizer, front corresponds to the numbered list below the illustration. For the 3 Series E21 320i, you can identify the Stabilizer, front by locating its position on the schematic, which then links to the official BMW part number 31351115872 for the Front Axle section.
