Stabilizer, front for BMW 3 Series E21 323i (1982)

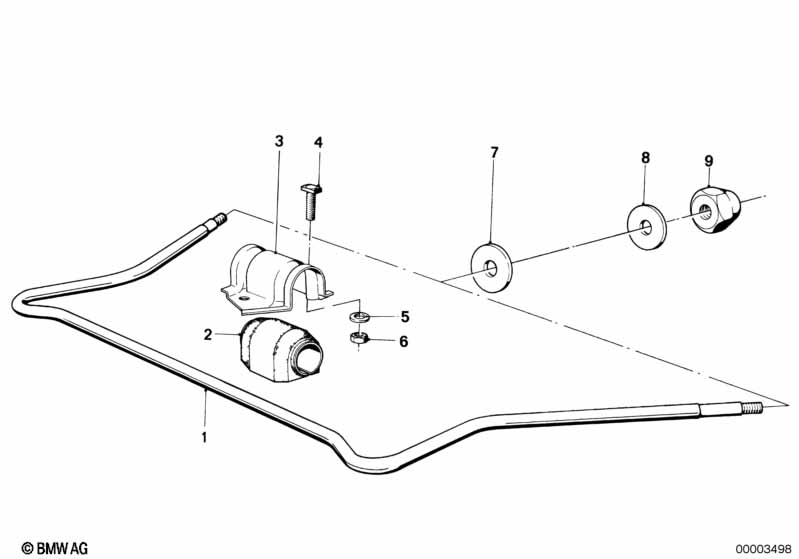

This Stabilizer, front technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stabilizer, front | D=23,5MM | 1 | 10/1978 | 31351126574 | $167.54 | Shop at ECS Tuning | |||
| 02 | Rubber Mounting | D=23,5MM | 2 | 10/1978 | 31351126577 | $17.47 | Shop at ECS Tuning | |||
| 03 | Bracket left | 1 | 10/1978 | 31351114724 | $6.52 | ENDED | Shop at ECS Tuning | |||
| 03 | Bracket right | 1 | 10/1978 | 31351114725 | $6.52 | ENDED | Shop at ECS Tuning | |||
| 04 | Screw | 4 | 10/1978 | 31351116342 | $3.03 | ENDED | Shop at ECS Tuning | |||
| 05 | Washer | 10-200 HV-ZNNIV | 4 | 10/1978 | 07119904168 | $8.35 | Shop at ECS Tuning | |||
| 06 | Self-locking hex nut | M10-10 ZNS3 | 4 | 10/1978 | 33326768900 | $0.78 | Shop at ECS Tuning | |||
| 07 | Washer | + GUMMI/RUBBER | 2 | 10/1978 | 31351123140 | $5.98 | Shop at ECS Tuning | |||
| 08 | Washer | 55X16X0,6 | 2 | 10/1978 | 31351121465 | $4.85 | Shop at ECS Tuning | |||
| 09 | Self-locking hex nut | M16X1,5 | 2 | 10/1978 | 07129922754 | $1.09 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
