Stabilizer, front for BMW 5 Series E12 528 (1976)

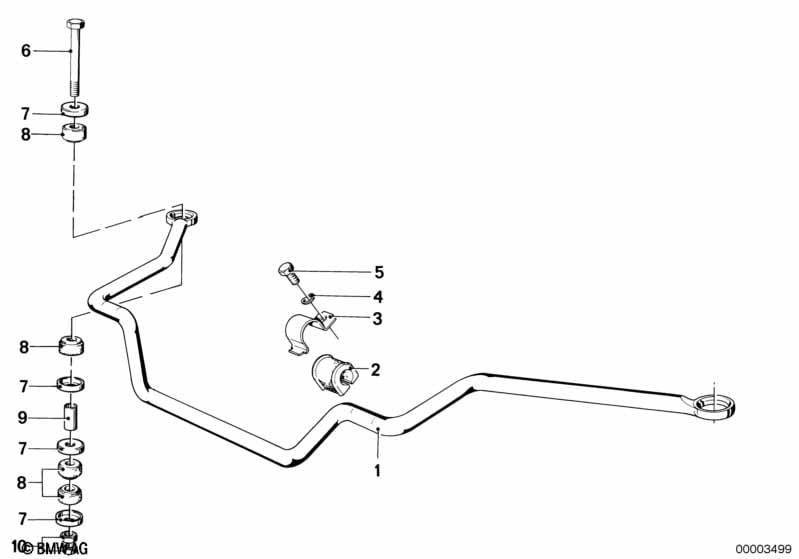

This Stabilizer, front technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stabilizer | D=23MM | 1 | 31351113023 | $158.47 | Shop at ECS Tuning | ||||
| 02 | Rubber Mounting | D=23MM | 2 | 31351118393 | $11.21 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Stabilizer support | 2 | 31351118390 | $7.36 | Shop at ECS Tuning | |||||
| 03 | Stabilizer support | 2 | 31351118390 | $7.36 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Rubber Mounting | D=21MM | 2 | 31351118391 | $3.93 | Shop at ECS Tuning | ||||
| -- | Rubber Mounting | D=22MM | 2 | 31351118392 | $4.80 | Shop at ECS Tuning | ||||
| -- | Rubber Mounting | D=23MM | 2 | 31351118393 | $11.21 | Shop at ECS Tuning | ||||
| 04 | Wave washer | B10-ZNS3 | 2 | 07119904463 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M10X22 | 2 | 07119913862 | ENDED | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M8X160 | 2 | 07119912595 | $3.47 | Shop at ECS Tuning | ||||
| 07 | Plate | 8 | 31351114570 | $3.59 | Shop at ECS Tuning | |||||
| 08 | Rubber Ring | 8 | 31351125712 | $1.37 | Shop at ECS Tuning | |||||
| 09 | Spacer sleeve | 2 | 31352654108 | $4.68 | ENDED | Shop at ECS Tuning | ||||
| 10 | Hex nut | M8-8-ZNS3 | 4 | 07/1981 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 10 | Hex nut | M8-8-ZNNIV SI | 4 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
