Stabilizer, front for BMW 7 Series E23 728i (1982)

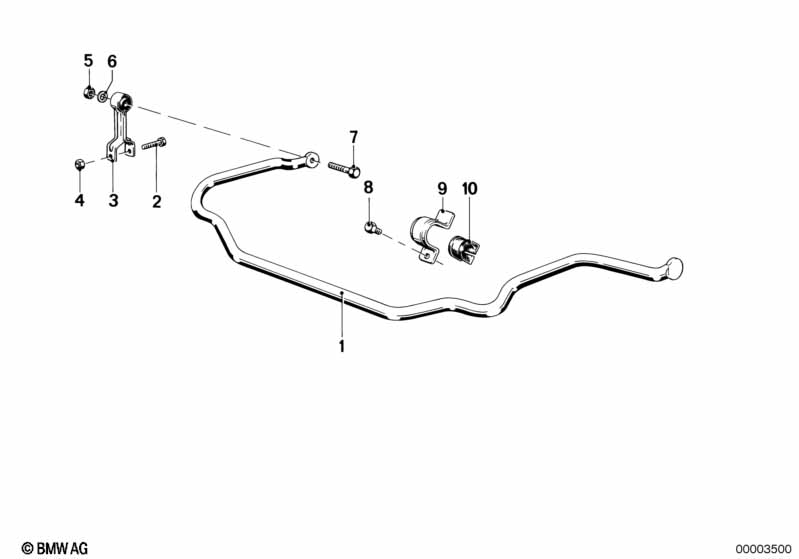

This Stabilizer, front technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stabilizer, front | D=24MM | 1 | 09/1982 | 31351118359 | $157.36 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Sport suspension |
=Yes |
|||||||||
| 01 | Stabilizer, front | D=25MM | 1 | 09/1982 | 31351122287 | $157.36 | ENDED | Shop at ECS Tuning | ||
| 02 | Hex bolt | M8X55-8.8 | 2 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 03 | Stabilizer link | 2 | 31351117023 | $38.93 | ENDED | Shop at ECS Tuning | ||||
| 04 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 05 | Self-locking hex nut | M10 | 2 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Washer | 10,2X32X1,5MM | 2 | 31351120307 | $0.20 | ENDED | Shop at ECS Tuning | |||
| 07 | Hex bolt | M10X60-10.9ZNS3 | 2 | 07119905162 | $1.78 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M8X20-ZNNIV SI | 4 | 07119903039 | Shop at ECS Tuning | |||||
| 09 | Stabilizer support | 2 | 31351118318 | $4.05 | Shop at ECS Tuning | |||||
| 10 | Stabilizer rubber mounting | D=24MM | 2 | 09/1982 | 31351119468 | $5.79 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Sport suspension |
=Yes |
|||||||||
| 10 | Stabilizer rubber mounting | D=25MM | 2 | 09/1982 | 31351122291 | $11.32 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
