Stabilizer, front for BMW 6 Series E24 M635CSi (1988)

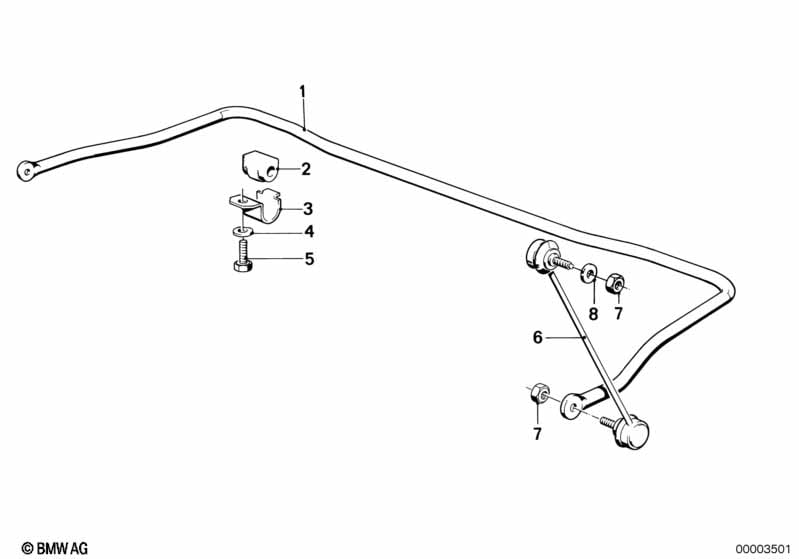

This Stabilizer, front technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 M635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stabilizer, front | D=25MM | 1 | 05/1982 | 31352225886 | $160.11 | Shop at ECS Tuning | |||
| 02 | Stabilizer rubber mounting | D=25MM | 2 | 05/1982 | 31352226001 | $17.55 | Shop at ECS Tuning | |||
| 03 | Stabilizer support | 2 | 05/1982 | 33506779734 | $3.04 | Shop at ECS Tuning | ||||
| 04 | Wave washer | 8,4X15-ZNS3 | 2 | 05/1982 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 05 | Hex bolt | M8X18 | 4 | 05/1982 | 07119913632 | $0.17 | ENDED | Shop at ECS Tuning | ||
| 06 | Stabilizer link | 2 | 05/1982 | 31351130075 | $31.32 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Self-locking hex nut | M10 | 4 | 05/1982 | 07129964672 | $0.36 | Shop at ECS Tuning | |||
| 07 | Self-locking hex nut | M10 | 4 | 05/1982 | 07129964672 | $0.36 | Shop at ECS Tuning | |||
| 08 | Washer | A10,5 | 2 | 05/1982 | 31351128229 | $2.82 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 M635CSi Stabilizer, front?
- This technical diagram illustrates the Stabilizer, front within the Front Axle group for the 6 Series E24 M635CSi produced during 1988. It provides a detailed exploded view of the components, identifying key parts such as the Stabilizer, front (Part #31352225886).
- Which models use the hardware listed in this Stabilizer, front?
- The hardware and components featured in the Stabilizer, front are specific to the 6 Series E24 M635CSi produced during 1988. These technical specifications ensure that parts like the Stabilizer, front (31352225886) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Stabilizer, front assembly?
- Each item in the Stabilizer, front corresponds to the numbered list below the illustration. For the 6 Series E24 M635CSi, you can identify the Stabilizer, front by locating its position on the schematic, which then links to the official BMW part number 31352225886 for the Front Axle section.
