Stabilizer, front for BMW 7 Series E32 740i (1994)

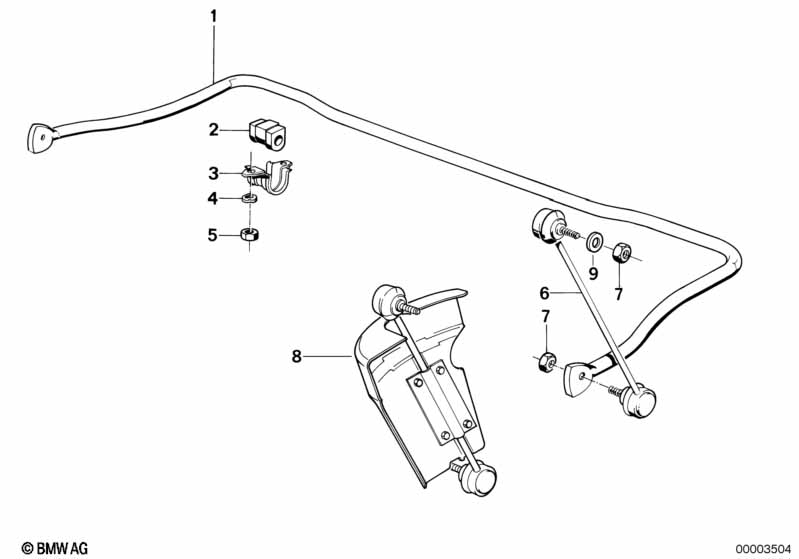

This Stabilizer, front technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stabilizer, front | D=24MM | 1 | 31351090124 | $178.80 | Shop at ECS Tuning | ||||
| For vehicles with Electronic Damper Control (EDC) |
=Yes |
|||||||||
| 01 | Stabilizer, front | D=25MM | 1 | 31351090757 | $155.12 | ENDED | Shop at ECS Tuning | |||
| 02 | Stabilizer rubber mounting | D=24MM | 2 | 31351132786 | $17.00 | Shop at ECS Tuning | ||||
| For vehicles with Electronic Damper Control (EDC) |
=Yes |
|||||||||
| 02 | Stabilizer rubber mounting | D=25MM | 2 | 31351136068 | $7.48 | Shop at ECS Tuning | ||||
| 03 | Stabilizer support | 2 | 31351131622 | $6.27 | Shop at ECS Tuning | |||||
| 05 | Hex nut | M8-8-ZNS3 | 2 | 04/1994 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 05 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 07 | Self-locking hex nut | M10 | 4 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Rod with air guide left | 1 | 31351139141 | $81.18 | ENDED | Shop at ECS Tuning | ||||
| 08 | Rod with air guide right | 1 | 31351139142 | $81.18 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
