Front spring strut/shock absorber for BMW 3 Series E21 320i (1979)

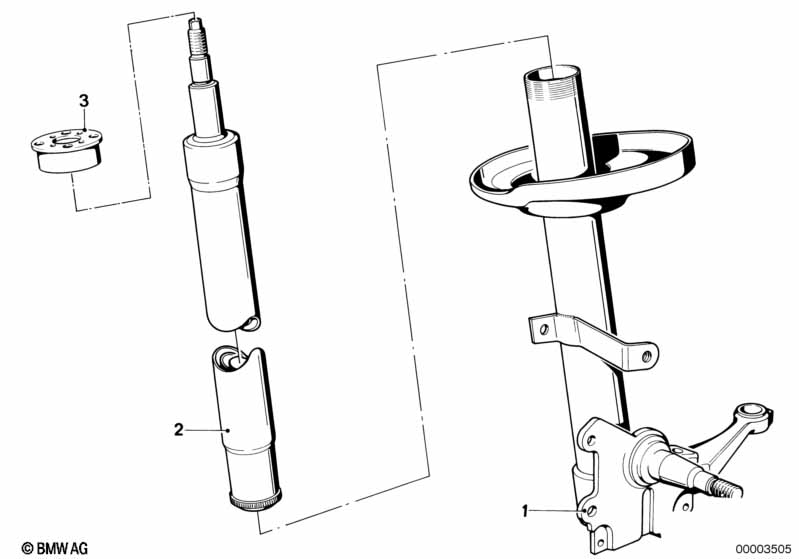

This Front spring strut/shock absorber technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left front spring strut | 1 | 09/1979 | 31311114614 | $236.70 | Shop at ECS Tuning | ||||
| 01 | Front right spring strut | 1 | 09/1979 | 31311114615 | $236.70 | ENDED | Shop at ECS Tuning | |||
| 02 | Shock absorber-insert | BILSTEIN | 2 | 09/1979 | 31321126276 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Threaded ring with internal thread | M45X1,5BILSTEIN | 2 | 09/1979 | 31321130068 | $39.14 | Shop at ECS Tuning | |||
| 02 | Shock absorber-insert | BOGE SPORT | 2 | 09/1977 | 31321121431 | $117.80 | Shop at ECS Tuning | |||
| 03 | Threaded ring with internal thread | M45X1,5 | 2 | 09/1979 | 31321115398 | $10.13 | Shop at ECS Tuning | |||
| 03 | Threaded ring with internal thread | M45X1,5BILSTEIN | 2 | 09/1979 | 31321130068 | $39.14 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320i Front spring strut/shock absorber?
- This technical diagram illustrates the Front spring strut/shock absorber within the Front Axle group for the 3 Series E21 320i produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Left front spring strut (Part #31311114614).
- Which models use the hardware listed in this Front spring strut/shock absorber?
- The hardware and components featured in the Front spring strut/shock absorber are specific to the 3 Series E21 320i produced during 1979. These technical specifications ensure that parts like the Left front spring strut (31311114614) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front spring strut/shock absorber assembly?
- Each item in the Front spring strut/shock absorber corresponds to the numbered list below the illustration. For the 3 Series E21 320i, you can identify the Left front spring strut by locating its position on the schematic, which then links to the official BMW part number 31311114614 for the Front Axle section.
