Coil spring/guide support/attach.parts for BMW 6 Series E24 633CSi (1979)

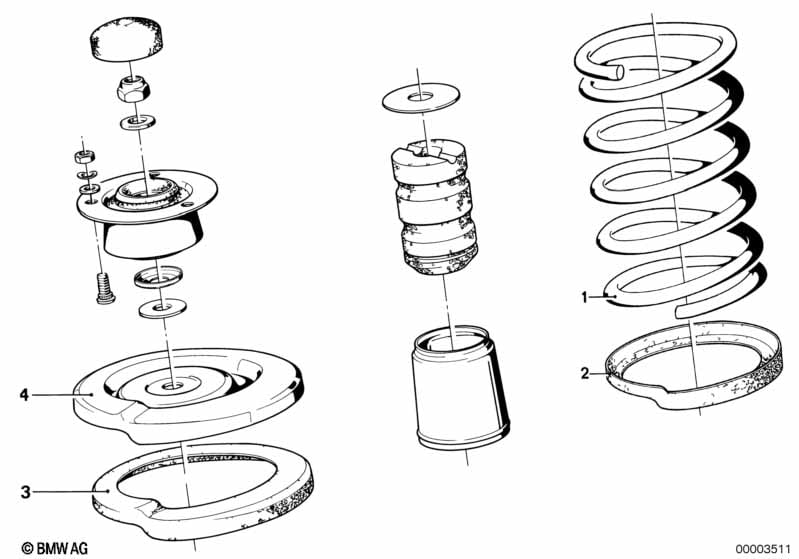

This Coil spring/guide support/attach.parts technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Coil spring | 2 | 09/1979 | 31331119011 | $130.57 | ENDED | Shop at ECS Tuning | |||
| 01 | Coil spring | 2 | 09/1979 | 31331119012 | $111.78 | ENDED | Shop at ECS Tuning | |||
| 02 | Spring pad | 2 | 09/1982 | 31331100636 | $13.07 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO COIL SPRING RED | ||||||||||
| 02 | Spring pad | 2 | 09/1982 | 31331121422 | $6.11 | Shop at ECS Tuning | ||||
| 03 | Spring pad upper | 3,5 MM | 2 | 09/1982 | 31331100635 | $4.54 | Shop at ECS Tuning | |||
| 04 | Upper spring plate | 2 | 04/1978 | 09/1982 | 31331117664 | $11.65 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
