Guide support/spring pad/attaching parts for BMW 7 Series E23 733i (1982)

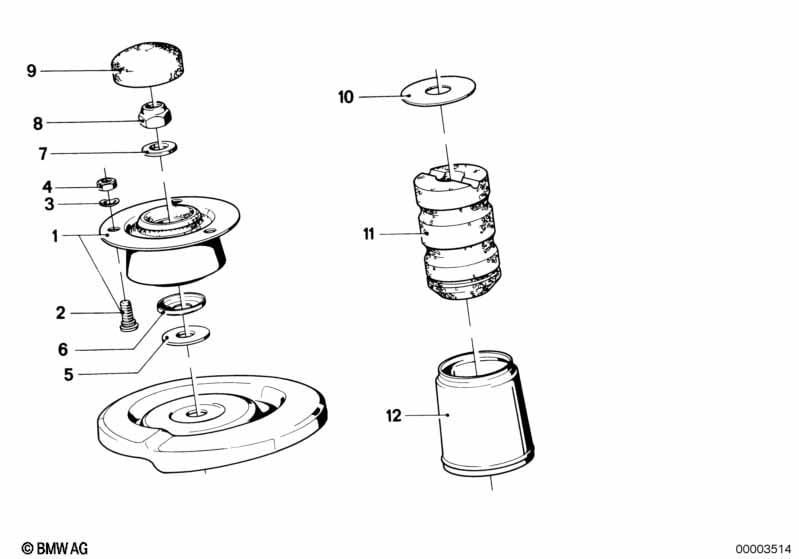

This Guide support/spring pad/attaching parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hard white guide support | 2 | 31331121551 | $121.70 | Shop at ECS Tuning | |||||
| 01 | Soft guide support | 2 | 31331121552 | $115.32 | Shop at ECS Tuning | |||||
| 02 | Pin | M8X18 ZNS3 | 6 | 31336765744 | $1.17 | Shop at ECS Tuning | ||||
| 03 | Wave washer | 8,4X15-ZNS3 | 6 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M8-8-ZNS3 | 6 | 06/1986 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 04 | Hex nut | M8-8-ZNNIV SI | 6 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 05 | Washer | 2 | 31332750139 | $0.57 | Shop at ECS Tuning | |||||
| 06 | Gasket ring | 2 | 31331108927 | $2.50 | Shop at ECS Tuning | |||||
| 07 | Washer | 2 | 31331110301 | $0.91 | Shop at ECS Tuning | |||||
| 08 | Self-locking hex nut | M18X1,5 | 2 | 07129922475 | $1.46 | Shop at ECS Tuning | ||||
| 09 | Cap | 2 | 31331119353 | $7.17 | Shop at ECS Tuning | |||||
| 10 | Washer | 2 | 31331118694 | $1.93 | Shop at ECS Tuning | |||||
| 11 | Absorber | 2 | 31331117662 | $15.08 | Shop at ECS Tuning | |||||
| 12 | Protection tube | 2 | 31331117663 | $6.61 | Shop at ECS Tuning |
