Front spring strut/shock absorber for BMW 3 Series E21 320 (1979)

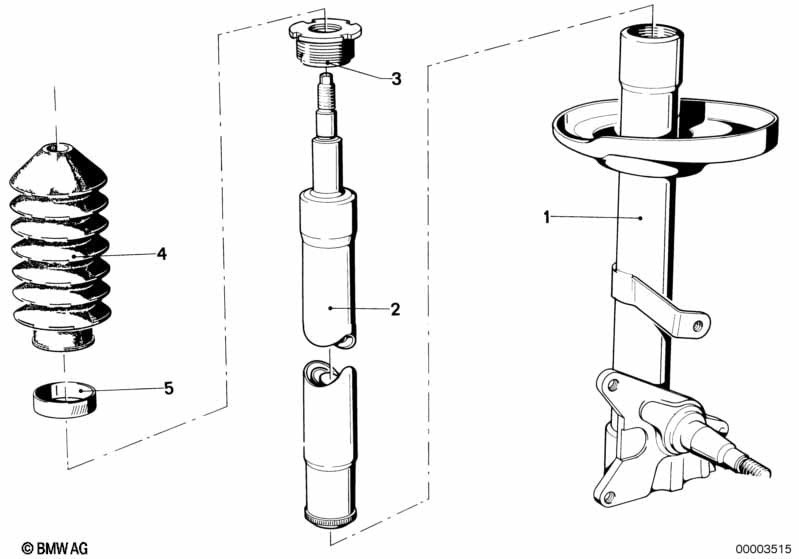

This Front spring strut/shock absorber technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left front spring strut | 1 | 31311114714 | $178.56 | Shop at ECS Tuning | |||||
| 01 | Front right spring strut | 1 | 31311114715 | $178.56 | Shop at ECS Tuning | |||||
| 02 | Shock absorber-insert | BILSTEIN | 2 | 31321124065 | $223.20 | ENDED | Shop at ECS Tuning | |||
| 02 | Shock absorber-insert | BOGE | 2 | 03/1979 | 31321123854 | $74.29 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Sport suspension |
=Yes |
|||||||||
| 02 | Shock absorber-insert | MOTORSPORT | 2 | 31322205731 | $212.30 | Shop at ECS Tuning | ||||
| 03 | Threaded ring with internal thread | M45X1,5 | 2 | 31321115398 | $10.13 | Shop at ECS Tuning | ||||
| 03 | Threaded ring with internal thread | M45X1,5BILSTEIN | 2 | 31321130068 | $39.14 | Shop at ECS Tuning | ||||
| 04 | Rubber boot | BILSTEIN | 2 | 31321124069 | $14.51 | ENDED | Shop at ECS Tuning | |||
| 05 | Hose clamp | BILSTEIN | 2 | 31321124070 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
