Front coil spring for BMW 3 Series E30 325e (1988)

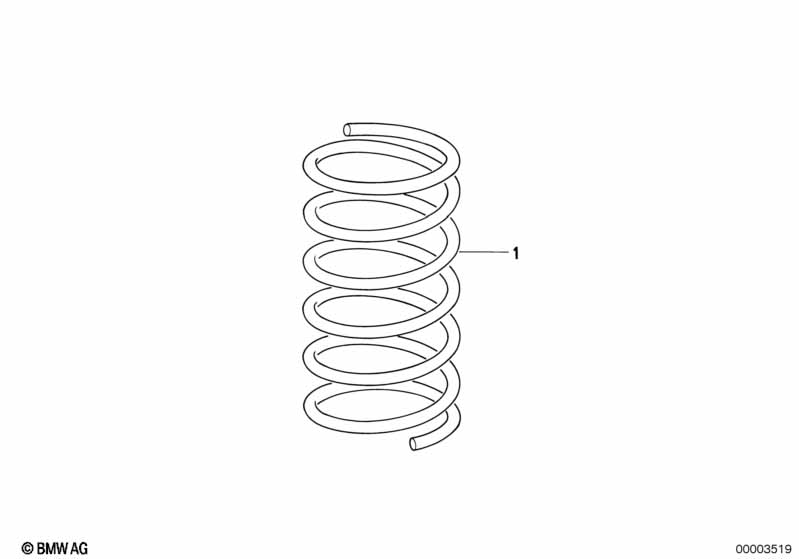

This Front coil spring technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO BILSTEIN | ||||||||||
| 01 | Coil spring | 2 | 03/1985 | 31331130046 | $134.04 | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning ONLY APPLIES TO BILSTEIN |
=Yes |
|||||||||
| 01 | Coil spring | 2 | 03/1985 | 31331130049 | $134.04 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325e Front coil spring?
- This technical diagram illustrates the Front coil spring within the Front Axle group for the 3 Series E30 325e produced during 1988. It provides a detailed exploded view of the components, identifying key parts such as the Coil spring (Part #31331130046).
- Which models use the hardware listed in this Front coil spring?
- The hardware and components featured in the Front coil spring are specific to the 3 Series E30 325e produced during 1988. These technical specifications ensure that parts like the Coil spring (31331130046) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front coil spring assembly?
- Each item in the Front coil spring corresponds to the numbered list below the illustration. For the 3 Series E30 325e, you can identify the Coil spring by locating its position on the schematic, which then links to the official BMW part number 31331130046 for the Front Axle section.
