Front coil spring for BMW 7 Series E23 728 (1978)

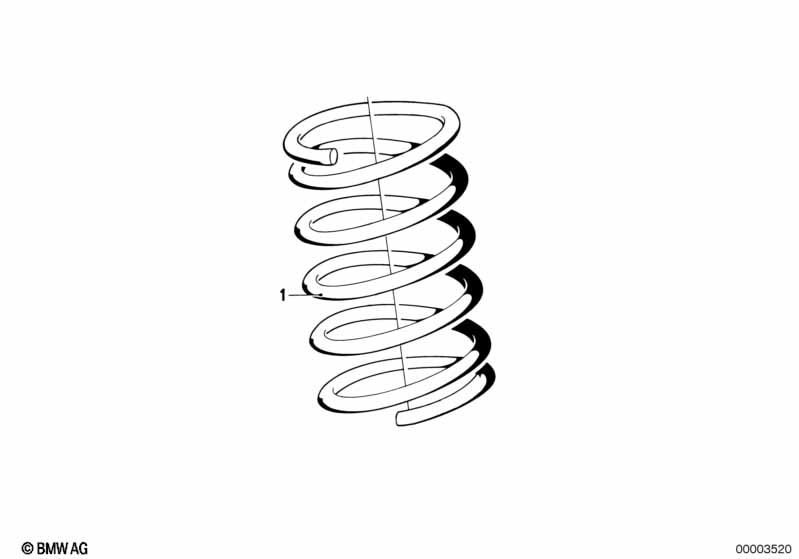

This Front coil spring technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Coil spring | 2 | 09/1979 | 31331119503 | ENDED | Shop at ECS Tuning | ||||
| 01 | Coil spring | 2 | 09/1979 | 31331119502 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with HD-suspension |
=Yes |
|||||||||
| 01 | Coil spring | 2 | 09/1979 | 31331119517 | $130.57 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sport suspension |
=Yes |
|||||||||
| 01 | Coil spring | 2 | 09/1979 | 31331123012 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 01 | Coil spring | 2 | 09/1979 | 31331119510 | ENDED | Shop at ECS Tuning | ||||
| 01 | Coil spring | 2 | 09/1979 | 31331119509 | $109.93 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sport suspension and Air conditioning |
=Yes =Yes |
|||||||||
| 01 | Coil spring | 2 | 09/1979 | 31331119510 | ENDED | Shop at ECS Tuning | ||||
| 01 | Coil spring | 2 | 09/1979 | 31331119509 | $109.93 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
