Guide support/spring pad/attaching parts for BMW 7 Series E23 728iS (1986)

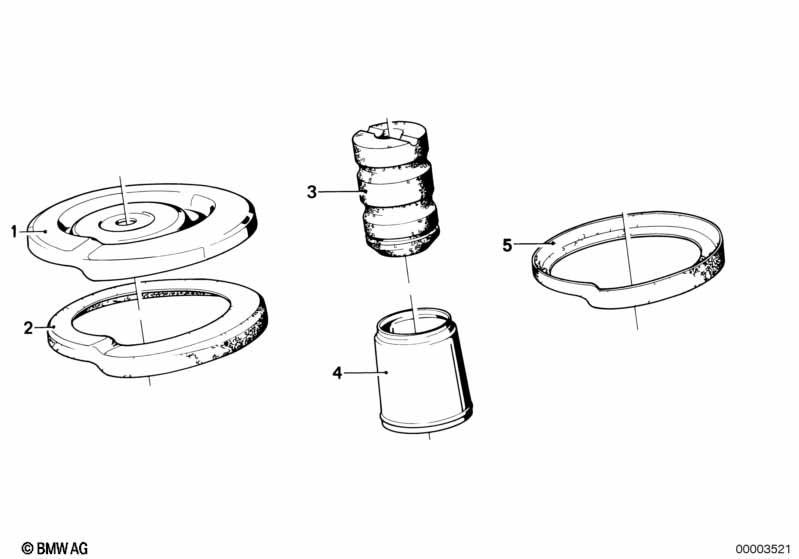

This Guide support/spring pad/attaching parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728iS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spring pocket | 2 | 09/1982 | 31331116041 | $18.21 | Shop at ECS Tuning | ||||
| 02 | Spring pad upper | 2 | 09/1979 | 31331116039 | $9.38 | ENDED | Shop at ECS Tuning | |||
| 03 | Absorber | 2 | 09/1979 | 31331117662 | $15.08 | Shop at ECS Tuning | ||||
| For vehicles with Sport suspension |
=Yes |
|||||||||
| 03 | Absorber | 2 | 09/1979 | 31331121835 | $16.39 | ENDED | Shop at ECS Tuning | |||
| 04 | Protection tube | 2 | 09/1979 | 31331117663 | $6.61 | Shop at ECS Tuning | ||||
| 05 | Spring pad lower | 2 | 09/1979 | 31331124100 | $6.89 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO COIL SPRING RED | ||||||||||
| 05 | Spring pad | 2 | 09/1979 | 31331116042 | $5.23 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
