Front spring strut/shock absorber for BMW 3 Series E30 318i (1987)
This Front spring strut/shock absorber technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left front spring strut | D=45MM | 1 | 31311127313 | $861.25 | Shop at ECS Tuning | ||||
| 01 | Front right spring strut | D=45MM | 1 | 31311127314 | $861.25 | Shop at ECS Tuning | ||||
| 01 | Left front spring strut | D=51MM | 1 | 31311127315 | $861.25 | ENDED | Shop at ECS Tuning | |||
| 01 | Front right spring strut | D=51MM | 1 | 31311127316 | $861.25 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO SPRING STRUT D=45 | ||||||||||
| 02 | Shock absorber-insert | BOGE | 2 | 31321133224 | $130.58 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version italy ONLY APPLIES TO M TECHNIC ONLY APPLIES TO SPRING STRUT D=51 |
L814A=Yes |
|||||||||
| 02 | Shock absorber-insert | BOGE | 2 | 31321135892 | $206.56 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Rough suspension ONLY APPLIES TO SPRING STRUT D=51 |
=Yes |
|||||||||
| 02 | Shock absorber-insert | BOGE | 2 | 31321135892 | $206.56 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sport suspension ONLY APPLIES TO SPRING STRUT D=51 |
=Yes |
|||||||||
| 02 | Shock absorber-insert | BOGE GAS | 2 | 09/1986 | 31301133438 | $327.23 | ENDED | Shop at ECS Tuning | ||
| 02 | Shock absorber-insert | BOGE GAS | 2 | 09/1986 | 31301133438 | $327.23 | ENDED | Shop at ECS Tuning | ||
| ONLY APPLIES TO M TECHNIC ONLY APPLIES TO SPRING STRUT D=45 |
||||||||||
| 03 | Shock absorber-insert | BILSTEIN | 2 | 31321130067 | $179.83 | Shop at ECS Tuning | ||||
| 03 | Shock absorber-insert | BILSTEIN | 2 | 31321130067 | $179.83 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO M TECHNIC ONLY APPLIES TO SPRING STRUT D=51 |
||||||||||
| 03 | Shock absorber-insert | BILSTEIN/M-TECH | 2 | 03/1985 | 09/1988 | 31321130065 | $206.56 | ENDED | Shop at ECS Tuning | |
| 03 | Shock absorber-insert | BILSTEIN/M-TECH | 2 | 03/1985 | 09/1988 | 31321130065 | $206.56 | ENDED | Shop at ECS Tuning | |
| 05 | Additional shock absorber, front | 2 | 31331124449 | $19.12 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO M TECHNIC | ||||||||||
| 05 | Additional shock absorber, front | 2 | 31331133513 | $19.12 | Shop at ECS Tuning | |||||
| 06 | Threaded ring with internal thread | M45X1,5 | 2 | 31321115398 | $10.13 | Shop at ECS Tuning | ||||
| 06 | Threaded ring with external thread | M48X1,5 | 2 | 31321117376 | $14.39 | Shop at ECS Tuning | ||||
| 06 | Threaded ring with internal thread | M45X1,5BILSTEIN | 2 | 31321130068 | $39.14 | Shop at ECS Tuning | ||||
| 06 | Threaded ring with external thread | M48X1,5BILSTEIN | 2 | 31321130069 | $39.14 | Shop at ECS Tuning | ||||
| For vehicles with Sport suspension |
=Yes |
|||||||||
| 06 | Threaded ring with external thread | M48X1,5 | 2 | 31321117376 | $14.39 | Shop at ECS Tuning | ||||

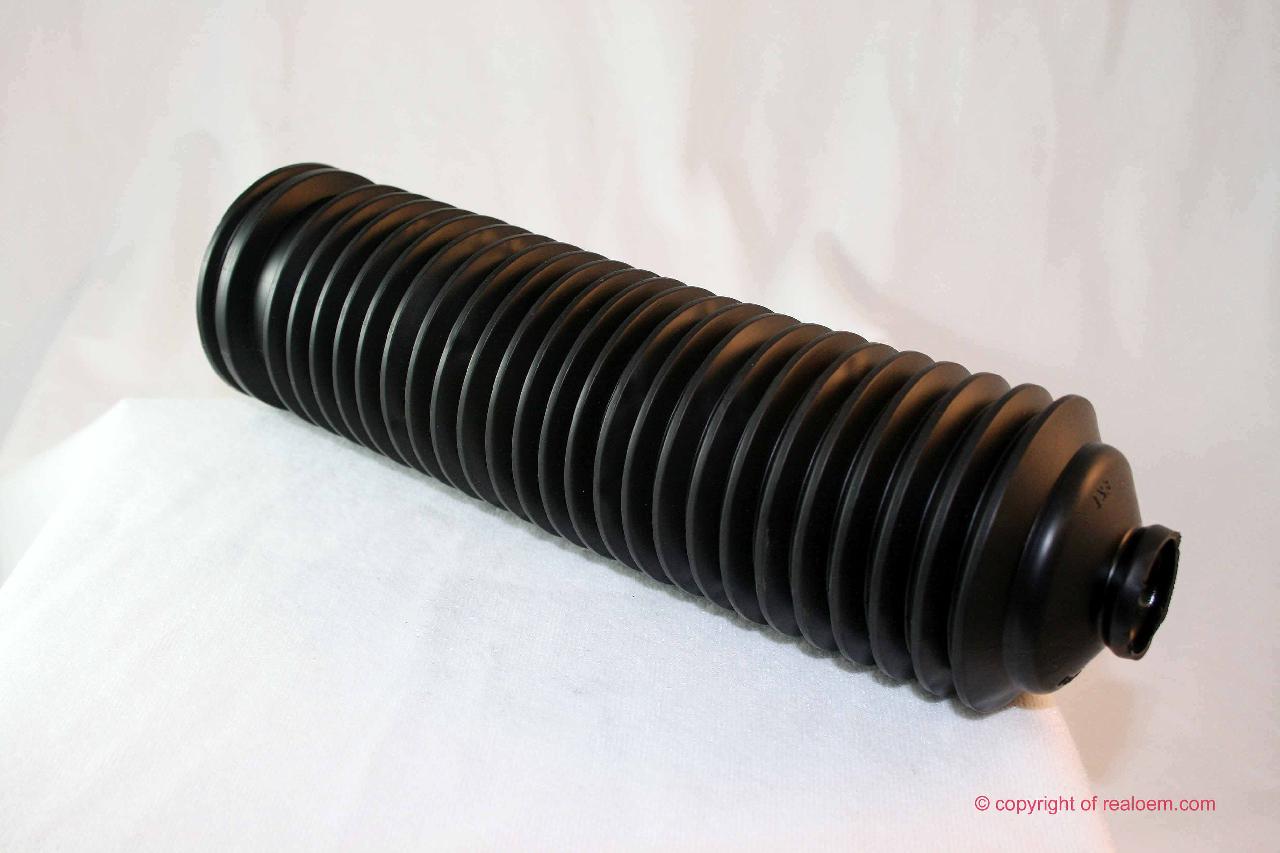

| 07 | Rubber boot | BILSTEIN | 2 | 31321128548 | $23.29 | Shop at ECS Tuning | ||||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 08 | Rubber boot | 2 | 31321125878 | $12.62 | Shop at ECS Tuning | |||||
| 09 | Threaded ring | D=51MM | 2 | 31311127285 | $3.02 | Shop at ECS Tuning | ||||
| 09 | Threaded ring | D=51MM | 2 | 12/1986 | 31311127285 | $3.02 | Shop at ECS Tuning | |||
| 09 | Threaded ring | D=51MM | 2 | 12/1986 | 31311127285 | $3.02 | Shop at ECS Tuning | |||
| 10 | Pulse generator, left | 1 | 34521178981 | $161.30 | Shop at ECS Tuning | |||||
| 10 | Pulse generator right | 1 | 34521178982 | $161.30 | Shop at ECS Tuning | |||||
| 11 | ISA screw | M6X12-8.8-ZNNIV | 2 | 07129905867 | Shop at ECS Tuning | |||||
| 12 | Spring washer Black | B6-ZN | 2 | 08/1990 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 12 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 13 | Cable holder | D=8MM | 2 | 61131370421 | $1.05 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
