Front spring strut/shock absorber for BMW 3 Series E30 320i (1992)

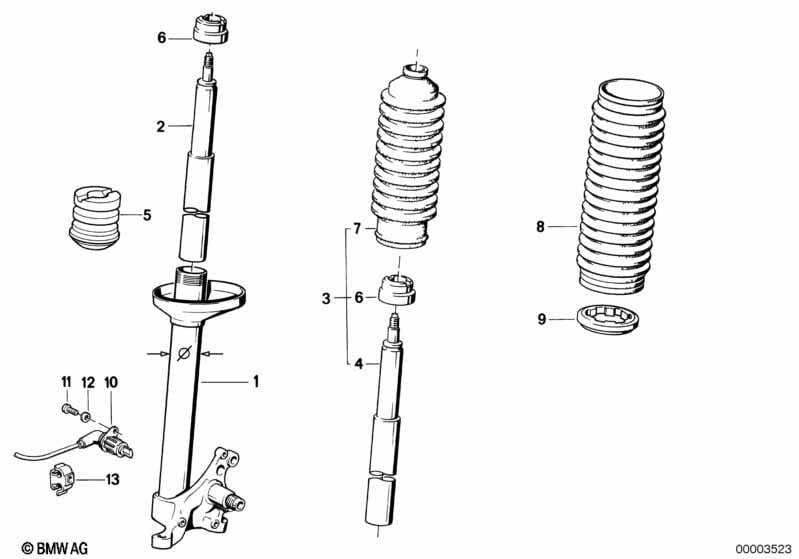

This Front spring strut/shock absorber technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left front spring strut | D=51MM | 1 | 31311127315 | $861.25 | ENDED | Shop at ECS Tuning | |||
| 01 | Front right spring strut | D=51MM | 1 | 31311127316 | $861.25 | Shop at ECS Tuning | ||||
| 02 | Shock absorber-insert | F+S GAS | 2 | 31321133560 | $206.56 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO M TECHNIC | ||||||||||
| 02 | Shock absorber-insert | F+S GAS | 2 | 31321133560 | $206.56 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan ONLY APPLIES TO M TECHNIC |
L807A=Yes |
|||||||||
| 02 | Shock absorber-insert | F+S GAS | 2 | 09/1987 | 31321133560 | $206.56 | ENDED | Shop at ECS Tuning | ||
| 05 | Additional shock absorber, front | 2 | 31331124449 | $19.12 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO M TECHNIC | ||||||||||
| 05 | Additional shock absorber, front | 2 | 31331133513 | $19.12 | Shop at ECS Tuning | |||||
| 06 | Threaded ring with external thread | M48X1,5 | 2 | 31321117376 | $14.39 | Shop at ECS Tuning | ||||
| 08 | Protection tube | 2 | 31331134314 | $2.25 | Shop at ECS Tuning | |||||
| 10 | Pulse generator, left | 1 | 34521178981 | $161.30 | Shop at ECS Tuning | |||||
| 10 | Pulse generator right | 1 | 34521178982 | $161.30 | Shop at ECS Tuning | |||||
| 11 | ISA screw | M6X12-8.8-ZNNIV | 2 | 07129905867 | Shop at ECS Tuning | |||||
| 12 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 13 | Cable holder | D=8MM | 2 | 61131370421 | $1.05 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
