Guide support/spring pad/attaching parts for BMW 5 Series E34 525i (1990)

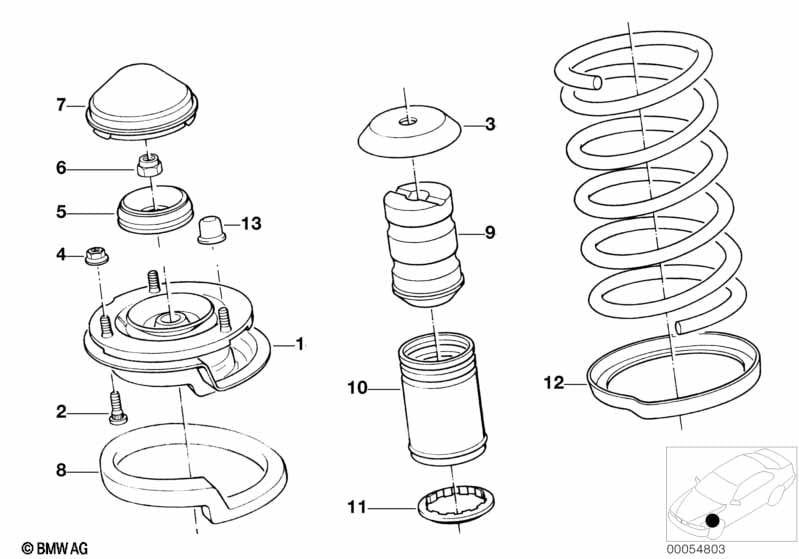

This Guide support/spring pad/attaching parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ROUGH SUSPENSION | |||||||||
| 01 | Guide support | 2 | 31331134096 | $142.83 | Shop at ECS Tuning | |||||
| 01 | Guide support camber correction | +30MIN. | 2 | 31331137233 | $239.94 | ENDED | Shop at ECS Tuning | |||
| 01 | Guide support camber correction | -30MIN. | 2 | 31331137234 | $357.00 | Shop at ECS Tuning | ||||
| 02 | Pin | M8X18 ZNS3 | 2 | 31336765744 | $1.17 | Shop at ECS Tuning | ||||
| 03 | Support | 2 | 31331129507 | $2.67 | Shop at ECS Tuning | |||||
| 04 | Self-locking collar nut | M8-8-ZNS3 | 6 | 07119904295 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Self-locking collar nut | M8-10 ZNS3 | 6 | 07119905374 | Shop at ECS Tuning | |||||
| 05 | Stopper | 2 | 31331134901 | $19.79 | Shop at ECS Tuning | |||||
| 06 | Self-locking hex nut | M12X1.5-05 ZNS3 | 2 | 32216769539 | $0.83 | Shop at ECS Tuning | ||||
| 07 | Protection cap | 2 | 31331133729 | $7.41 | Shop at ECS Tuning | |||||
| 07 | Protection cap | 2 | 31331129512 | $53.47 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Guide support camber correction | +30MIN. | X | 31331137233 | $239.94 | ENDED | Shop at ECS Tuning | |||
| -- | Guide support camber correction | -30MIN. | X | 31331137234 | $357.00 | Shop at ECS Tuning | ||||
| 08 | Spring pad upper | 9MM | 2 | 31331128522 | $6.94 | Shop at ECS Tuning | ||||
| 09 | Additional shock absorber, front | 2 | 31331124449 | $19.12 | Shop at ECS Tuning | |||||
| 10 | Rubber boot | 2 | 31321125878 | $12.62 | Shop at ECS Tuning | |||||
| 11 | Ring | 2 | 31311132625 | $3.02 | Shop at ECS Tuning | |||||
| 12 | Spring pad lower | 3MM | 2 | 31331124322 | $4.47 | Shop at ECS Tuning | ||||
| 13 | Protection cap | 6 | 61138354207 | $0.72 | Shop at ECS Tuning | |||||
