Front spring strut/shock absorber for BMW 5 Series E34 525i (1995)

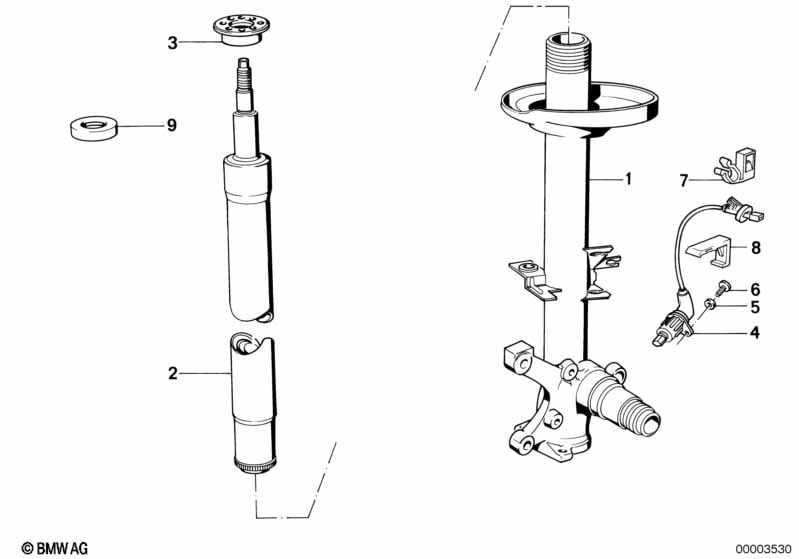

This Front spring strut/shock absorber technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Front left spring strut with wheel hub | 1 | 03/1991 | 31319065428 | $249.98 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Front right spring strut with wheel hub | 1 | 03/1991 | 31319065429 | $249.98 | ENDED | Shop at ECS Tuning | |||
| 01 | Left front spring strut | 1 | 03/1991 | 31311138487 | $738.50 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Front right spring strut | 1 | 03/1991 | 31311138488 | $738.50 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Wheel hub, front | 1 | 03/1991 | 31221139348 | +core | Shop at ECS Tuning | ||||
| -- | Dust protection collar | D=69MM | 1 | 03/1991 | 31206777788 | $2.22 | Shop at ECS Tuning | |||
| For vehicles with National version japan and Anti block system (ABS) |
L807A=Yes =Yes |
|||||||||
| 01 | Front left spring strut with wheel hub | 1 | 11/1991 | 31319065428 | $249.98 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Front right spring strut with wheel hub | 1 | 11/1991 | 31319065429 | $249.98 | ENDED | Shop at ECS Tuning | |||
| 01 | Left front spring strut | 1 | 11/1991 | 31311138487 | $738.50 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Front right spring strut | 1 | 11/1991 | 31311138488 | $738.50 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Wheel hub, front | 1 | 11/1991 | 31221139348 | +core | Shop at ECS Tuning | ||||
| -- | Dust protection collar | D=69MM | 1 | 11/1991 | 31206777788 | $2.22 | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 02 | Shock absorber-insert | BOGE/SACHS | 2 | 09/1992 | 31321092283 | $234.65 | ENDED | Shop at ECS Tuning | ||
| For vehicles with National version japan and Electronic Damper Control (EDC) |
L807A=Yes =Yes |
|||||||||
| 02 | Shock absorber-insert | 2 | 31321134811 | $889.50 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and M Technic low-slung sports suspension or Low-slung M sports suspension |
L807A=Yes =Yes =Yes |
|||||||||
| 02 | Shock absorber-insert | 2 | 09/1991 | 31321138833 | $484.63 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 03 | Threaded ring | M55X1,5 | 2 | 31321129196 | $17.74 | Shop at ECS Tuning | ||||
| 04 | Pulse generator, ABS | 2 | 34521181491 | $137.58 | ENDED | Shop at ECS Tuning | ||||
| 04 | Pulse generator, ABS | 2 | 34521181839 | Shop at ECS Tuning | ||||||
| 05 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Cable holder | D=7MM | 4 | 61131379359 | $0.70 | Shop at ECS Tuning | ||||
| 09 | Spacer | 2 | 31321129977 | $6.19 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
