Front spring strut/shock absorber for BMW 8 Series E31 850Ci (1992)

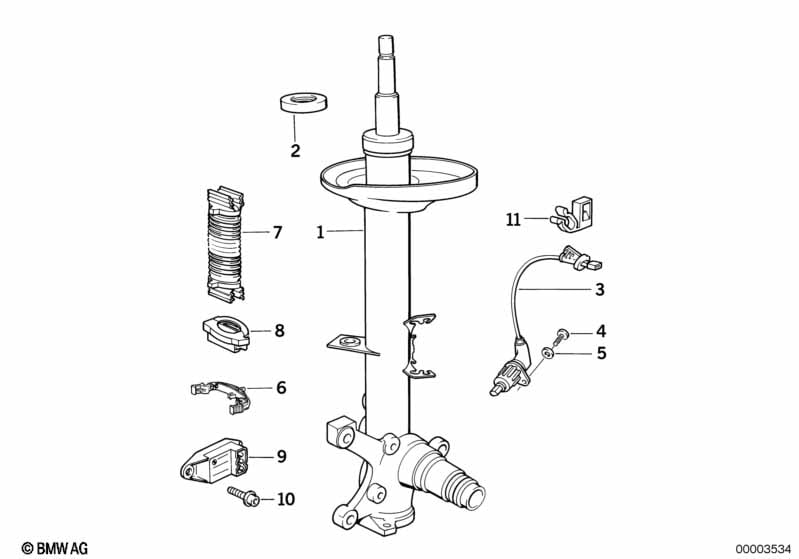

This Front spring strut/shock absorber technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left front spring strut | 1 | 31311138551 | $902.76 | Shop at ECS Tuning | |||||
| 01 | Front right spring strut | 1 | 31311138552 | $902.76 | Shop at ECS Tuning | |||||
| 02 | Spacer | 2 | 31321129977 | $6.19 | Shop at ECS Tuning | |||||
| 03 | Pulse generator, ABS | VDO | 2 | 09/1991 | 12/1994 | 34521181911 | $275.84 | Shop at ECS Tuning | ||
| 04 | ISA screw | M6X12-8.8-ZNNIV | 2 | 07129905867 | Shop at ECS Tuning | |||||
| 05 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Cable holder | 2 | 31181180637 | $1.33 | ENDED | Shop at ECS Tuning | ||||
| 07 | Rubber boot | 2 | 31181180599 | $6.20 | ENDED | Shop at ECS Tuning | ||||
| 08 | Support shackle | 4 | 31181180598 | $2.00 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
