Wheel bearing for BMW 3 Series E21 318i (1982)

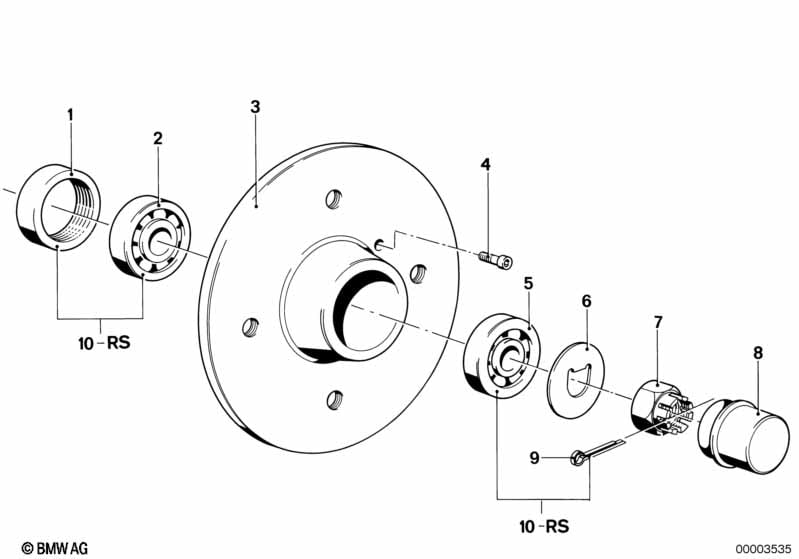

This Wheel bearing technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shaft seal | 40X52X7 | 2 | 31211101114 | $11.45 | Shop at ECS Tuning | ||||
| 02 | Tapered roller bearing | 29X50,29X14,22 | 2 | 31211101115 | $15.36 | Shop at ECS Tuning | ||||
| 03 | Wheel hub | 2 | 31211116682 | $273.27 | ENDED | Shop at ECS Tuning | ||||
| 04 | Inner hex bolt | M8X12 | 2 | 34111123072 | $1.32 | Shop at ECS Tuning | ||||
| 05 | Tapered roller bearing | 17X39,87X13,84 | 2 | 31212634104 | $7.04 | ENDED | Shop at ECS Tuning | |||
| 06 | Washer | 2 | 31212634115 | $9.20 | Shop at ECS Tuning | |||||
| 07 | Crown nut | M16X1 | 2 | 31211104626 | $7.49 | Shop at ECS Tuning | ||||
| 08 | Cap | 2 | 31212031756 | $4.59 | Shop at ECS Tuning | |||||
| 09 | Split pin | 2 | 31211110140 | $0.42 | Shop at ECS Tuning | |||||
| 10 | Wheel bearing repair kit | 2 | 31211107447 | $72.43 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 318i Wheel bearing?
- This technical diagram illustrates the Wheel bearing within the Front Axle group for the 3 Series E21 318i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Shaft seal (Part #31211101114).
- Which models use the hardware listed in this Wheel bearing?
- The hardware and components featured in the Wheel bearing are specific to the 3 Series E21 318i produced during 1982. These technical specifications ensure that parts like the Shaft seal (31211101114) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Wheel bearing assembly?
- Each item in the Wheel bearing corresponds to the numbered list below the illustration. For the 3 Series E21 318i, you can identify the Shaft seal by locating its position on the schematic, which then links to the official BMW part number 31211101114 for the Front Axle section.
