Wheel bearing for BMW 5 Series E12 528 (1977)

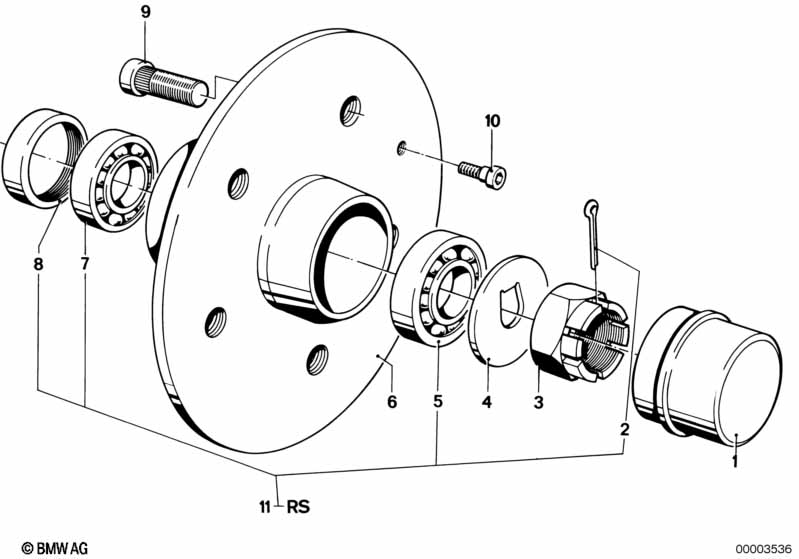

This Wheel bearing technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cap | 2 | 31212634120 | $6.03 | Shop at ECS Tuning | |||||
| 02 | Split pin | 2 | 31211110140 | $0.42 | Shop at ECS Tuning | |||||
| 03 | Crown nut | M16X1 | 2 | 31211104626 | $7.49 | Shop at ECS Tuning | ||||
| 04 | Washer | 2 | 31212634115 | $9.20 | Shop at ECS Tuning | |||||
| 05 | Tapered roller bearing | 19X45,23X15,49 | 2 | 31212634103 | $15.45 | ENDED | Shop at ECS Tuning | |||
| 06 | Wheel hub | 2 | 02/1976 | 31211123434 | $117.73 | ENDED | Shop at ECS Tuning | |||
| 07 | Tapered roller bearing | 31,7X59,13X15,8 | 2 | 31212634106 | $15.60 | Shop at ECS Tuning | ||||
| 08 | Shaft seal | 45X62X7 | 2 | 31212634108 | $12.32 | Shop at ECS Tuning | ||||
| 08 | Shaft seal | 2 | 31211106218 | ENDED | Shop at ECS Tuning | |||||
| 10 | Fillister-head screw | M6 | 2 | 34111117461 | $1.16 | Shop at ECS Tuning | ||||
| 10 | Inner hex bolt | M8X12 | 2 | 34111123072 | $1.32 | Shop at ECS Tuning | ||||
| 11 | Wheel bearing repair kit | 2 | 31211107456 | $105.54 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
