Wheel bearing for BMW 7 Series E23 733i (1979)

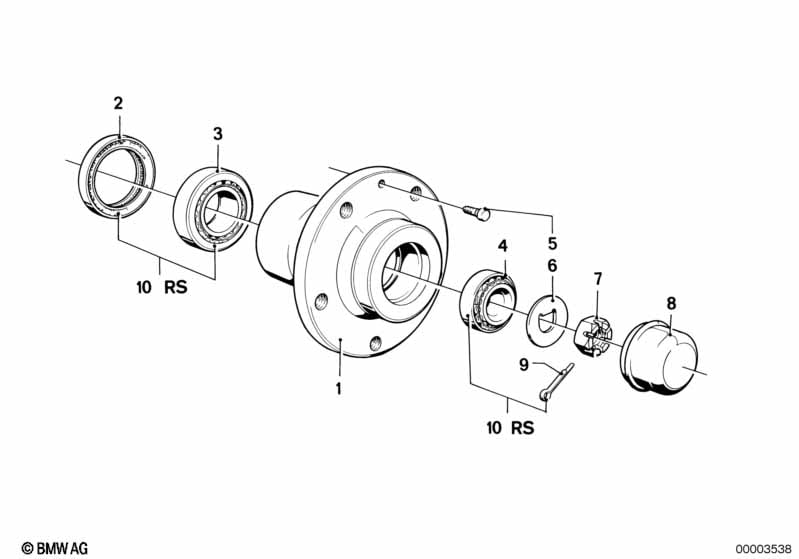

This Wheel bearing technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wheel hub | 2 | 31213901403 | Shop at ECS Tuning | ||||||
| For vehicles with Anti block system (ABS) |
=Yes |
|||||||||
| 01 | Wheel hub | 2 | 31211123435 | $221.36 | Shop at ECS Tuning | |||||
| 02 | Shaft seal | 2 | 31211119200 | $12.63 | Shop at ECS Tuning | |||||
| 03 | Wheel bearing repair kit | 2 | 31211119571 | $94.27 | Shop at ECS Tuning | |||||
| 03 | Tapered roller bearing | 2 | 31213905843 | Shop at ECS Tuning | ||||||
| 04 | Wheel bearing repair kit | 2 | 31211119571 | $94.27 | Shop at ECS Tuning | |||||
| 04 | Tapered roller bearing | 2 | 31213905844 | Shop at ECS Tuning | ||||||
| 05 | Inner hex bolt | M8X12 | 2 | 34111123072 | $1.32 | Shop at ECS Tuning | ||||
| 06 | Washer | 2 | 31212634115 | $9.20 | Shop at ECS Tuning | |||||
| 07 | Crown nut | M16X1 | 2 | 31211104626 | $7.49 | Shop at ECS Tuning | ||||
| 08 | Cap | 2 | 31212634120 | $6.03 | Shop at ECS Tuning | |||||
| 09 | Split pin | 2 | 31211110140 | $0.42 | Shop at ECS Tuning | |||||
| 10 | Wheel bearing repair kit | 2 | 31211119571 | $94.27 | Shop at ECS Tuning | |||||
