Wheel bearing for BMW 3 Series E30 M3 (1990)

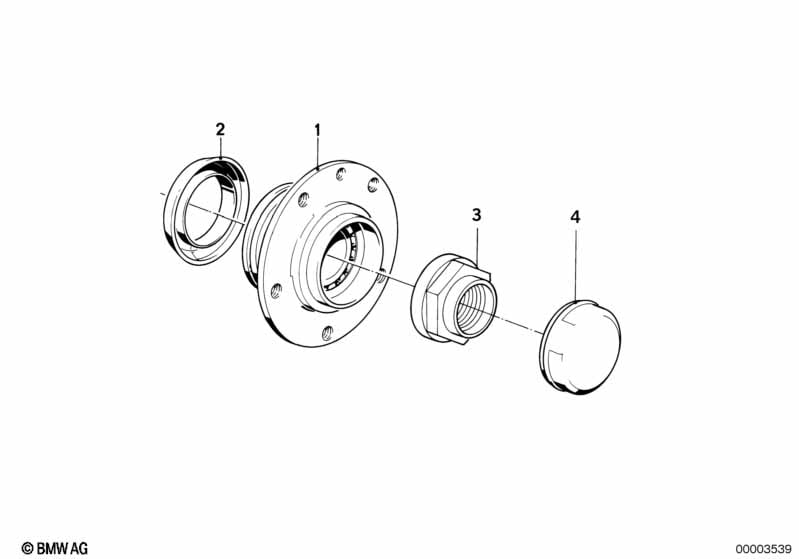

This Wheel bearing technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version japan |
L807A=Yes |
||||||||
| 01 | Wheel hub with bearing, front | 2 | 31212225362 | $333.95 | Shop at ECS Tuning | |||||
| 02 | Cup | 77MM | 2 | 31211126065 | $3.05 | Shop at ECS Tuning | ||||

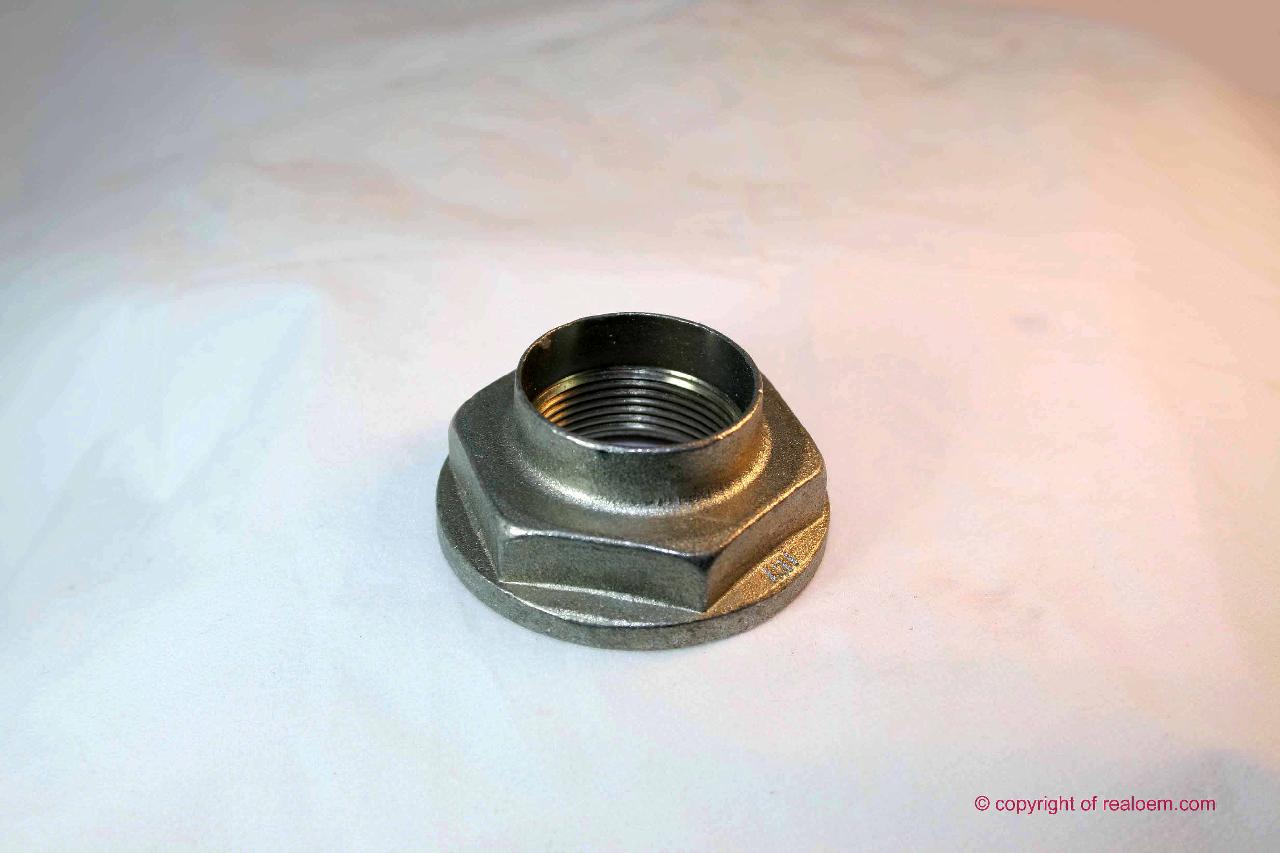

| 03 | Collar nut | 2 | 31211128336 | $7.48 | Shop at ECS Tuning | |||||
| 04 | Cap | 2 | 31206777789 | $3.02 | Shop at ECS Tuning | |||||
