Wheel bearing for BMW 5 Series E34 525td (1995)

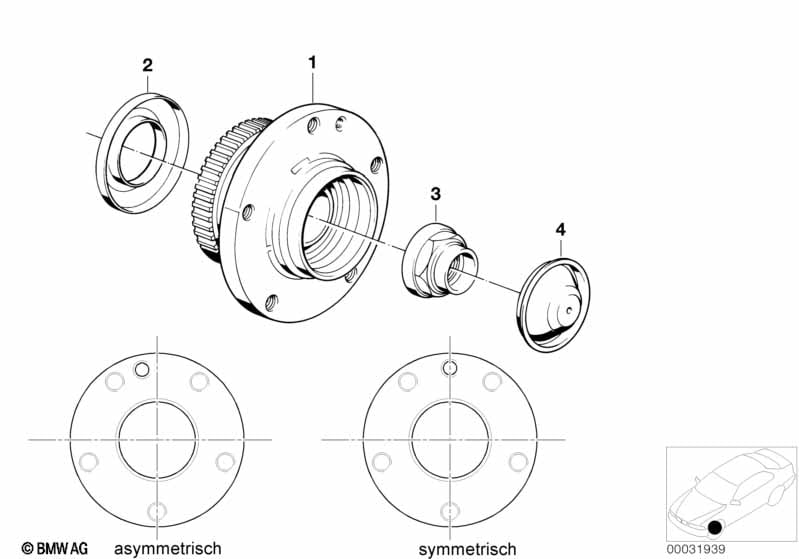

This Wheel bearing technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Check hole pattern for brake disk mounting at the vehicle: Asymmetric arrangement up to chassis no. Symmetric arrangement from chassis no. Fitting of this wheel hub only! |
|||||||||
| 01 | Wheel hub, front, symmetric | D=83MM | 2 | 31221139345 | $211.75 | ENDED | Shop at ECS Tuning | |||
| 01 | Wheel hub, front | 2 | 03/1991 | 31221139348 | +core | Shop at ECS Tuning | ||||
| For vehicles with Anti block system (ABS) |
=Yes |
|||||||||
| 01 | Wheel hub, front, symmetric | D=83MM | 2 | 31221139345 | $211.75 | ENDED | Shop at ECS Tuning | |||
| 01 | Wheel hub, front | 2 | 11/1991 | 31221139348 | +core | Shop at ECS Tuning | ||||
| 02 | Dust protection collar | D=69MM | 2 | 03/1991 | 31206777788 | $2.22 | Shop at ECS Tuning | |||
| For vehicles with Anti block system (ABS) |
=Yes |
|||||||||
| 02 | Dust protection collar | D=69MM | 2 | 11/1991 | 31206777788 | $2.22 | Shop at ECS Tuning | |||
| 03 | Collar nut | 2 | 31211128336 | $7.48 | Shop at ECS Tuning | |||||
| 04 | Cap | 2 | 31206777789 | $3.02 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
