Wheel bearing for BMW 3 Series E30 325ix (1991)

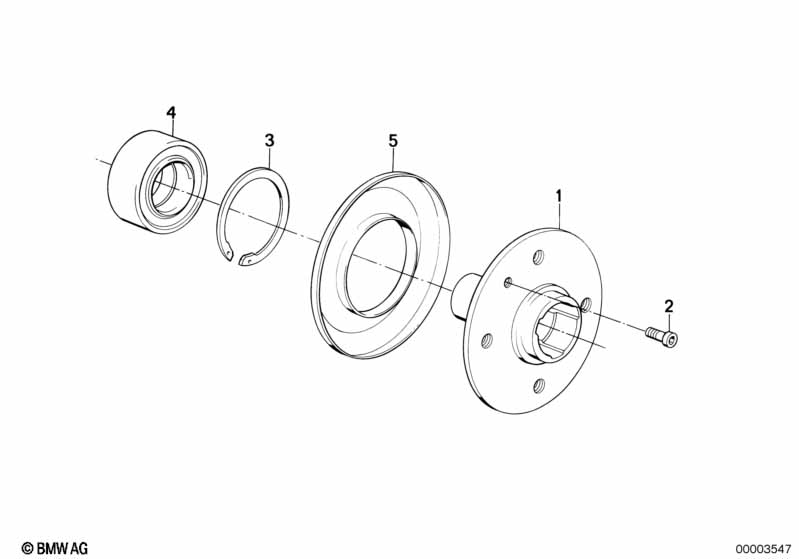

This Wheel bearing technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wheel hub | 1 | 31211130549 | $208.00 | Shop at ECS Tuning | |||||
| 02 | Inner hex bolt | M8X12 | 2 | 34111123072 | $1.32 | Shop at ECS Tuning | ||||
| 03 | Lock Ring | 79X2,5 | 2 | 33411138648 | $1.32 | Shop at ECS Tuning | ||||
| 04 | Ball bearing | 42X75,05X37 | 2 | 31211132284 | $122.71 | ENDED | Shop at ECS Tuning | |||
| 05 | Cup | 2 | 31211130238 | $3.36 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325ix Wheel bearing?
- This technical diagram illustrates the Wheel bearing within the Front Axle group for the 3 Series E30 325ix produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Wheel hub (Part #31211130549).
- Which models use the hardware listed in this Wheel bearing?
- The hardware and components featured in the Wheel bearing are specific to the 3 Series E30 325ix produced during 1991. These technical specifications ensure that parts like the Wheel hub (31211130549) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Wheel bearing assembly?
- Each item in the Wheel bearing corresponds to the numbered list below the illustration. For the 3 Series E30 325ix, you can identify the Wheel hub by locating its position on the schematic, which then links to the official BMW part number 31211130549 for the Front Axle section.
