Front axle support for BMW 7 Series E32 740i (1994)

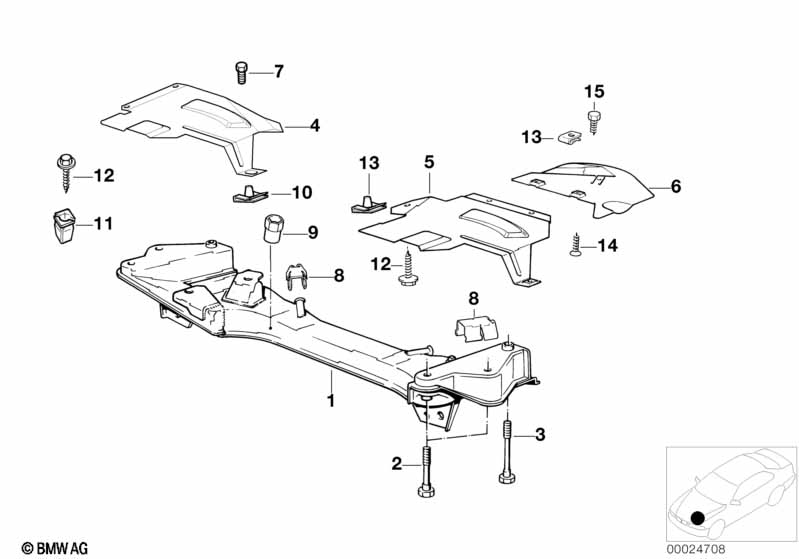

This Front axle support technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front axle support | 1 | 31111139661 | $677.97 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Blind rivet nut, countersunk head | M6 | 1 | 52201975880 | $0.77 | Shop at ECS Tuning | ||||
| 02 | Reduced-shaft bolt | M10X95 | 4 | 31111130262 | $1.36 | Shop at ECS Tuning | ||||
| 03 | Reduced-shaft bolt | M10X150 | 2 | 31111130687 | $2.06 | Shop at ECS Tuning | ||||
| 05 | Heat resistant plate front left | 1 | 32201141401 | $29.02 | ENDED | Shop at ECS Tuning | ||||
| 05 | Heat resistant plate front right | 1 | 32201141402 | $29.02 | ENDED | Shop at ECS Tuning | ||||
| 06 | Heat resistant plate rear right | 1 | 32201141404 | $13.95 | ENDED | Shop at ECS Tuning | ||||
| 06 | Heat resistant plate rear left | 1 | 32211141135 | $15.33 | ENDED | Shop at ECS Tuning | ||||
| 09 | Blind rivet nut, countersunk head | M6 | 1 | 52201975880 | $0.77 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M6X10 | 4 | 07119900054 | $0.25 | Shop at ECS Tuning | ||||
| 13 | Body nut | ST4,8-13-ZNS3 | 4 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
| 14 | Fillister head self-tapping screw | ST4,8X13-Z2 | 4 | 07119907957 | $0.18 | Shop at ECS Tuning | ||||
| 15 | Hex head screw | ST6,3X13-C-Z1 | 2 | 07119916960 | $0.24 | Shop at ECS Tuning | ||||
