Guide support/spring pad/attaching parts for BMW 5 Series E28 524td (1984)

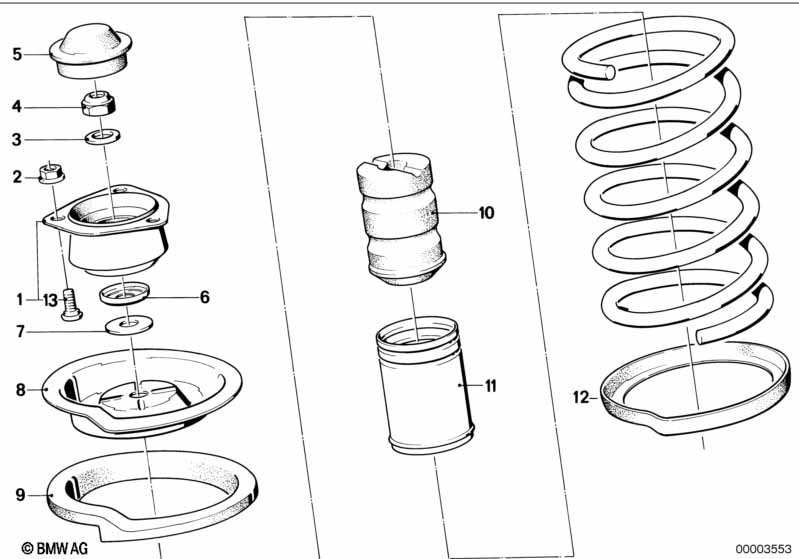

This Guide support/spring pad/attaching parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 524td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Guide support | 2 | 09/1984 | 31331139452 | $88.77 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Guide support camber correction | +/- 30MIN. | 2 | 09/1984 | 31331139484 | $221.88 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Covering cap | D=32MM | 2 | 09/1984 | 31311139453 | $1.48 | Shop at ECS Tuning | |||
| 02 | Self-locking collar nut | M8-8-ZNS3 | 6 | 09/1984 | 07119904295 | $0.36 | Shop at ECS Tuning | |||
| 02 | Self-locking collar nut | M8-10 ZNS3 | 6 | 09/1984 | 07119905374 | Shop at ECS Tuning | ||||
| 03 | Washer | A13/HV-ZNS | 2 | 09/1984 | 07119901766 | $0.30 | ENDED | Shop at ECS Tuning | ||
| 03 | Washer | 12-300 HV-ZNS3 | 2 | 09/1984 | 07119904119 | $0.25 | Shop at ECS Tuning | |||
| 04 | Self-locking hex nut | M12X1.5-05 ZNS3 | 2 | 09/1984 | 32216769539 | $0.83 | Shop at ECS Tuning | |||
| 05 | Covering cap | D=32MM | 2 | 09/1984 | 31311139453 | $1.48 | Shop at ECS Tuning | |||
| 05 | Covering cap | D=28,5MM | 2 | 09/1984 | 31331124335 | $1.71 | Shop at ECS Tuning | |||
| 06 | Dust protection collar | 2 | 09/1984 | 31331110196 | $1.84 | Shop at ECS Tuning | ||||
| 07 | Washer | 37X2,5MM ZNS3 | 2 | 09/1984 | 31336776760 | $0.87 | Shop at ECS Tuning | |||
| 08 | Upper spring plate | 2 | 09/1984 | 31331128524 | $9.02 | Shop at ECS Tuning | ||||
| 09 | Spring pad upper | 3MM | 2 | 09/1984 | 31331128523 | $4.52 | Shop at ECS Tuning | |||
| ONLY APPLIES TO COIL SPRING RED | ||||||||||
| 09 | Spring pad upper | 9MM | 2 | 09/1984 | 31331128522 | $6.94 | Shop at ECS Tuning | |||
| 10 | Additional shock absorber, front | 2 | 09/1984 | 31331124449 | $19.12 | Shop at ECS Tuning | ||||
| 11 | Protection tube | 2 | 09/1984 | 31331134314 | $2.25 | Shop at ECS Tuning | ||||
| 12 | Spring pad lower | 3MM | 2 | 09/1984 | 31331124322 | $4.47 | Shop at ECS Tuning | |||
| 13 | Pin | M8X18 ZNS3 | 6 | 09/1984 | 31336765744 | $1.17 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
