Guide support/spring pad/attaching parts for BMW 3 Series E30 320i (1992)

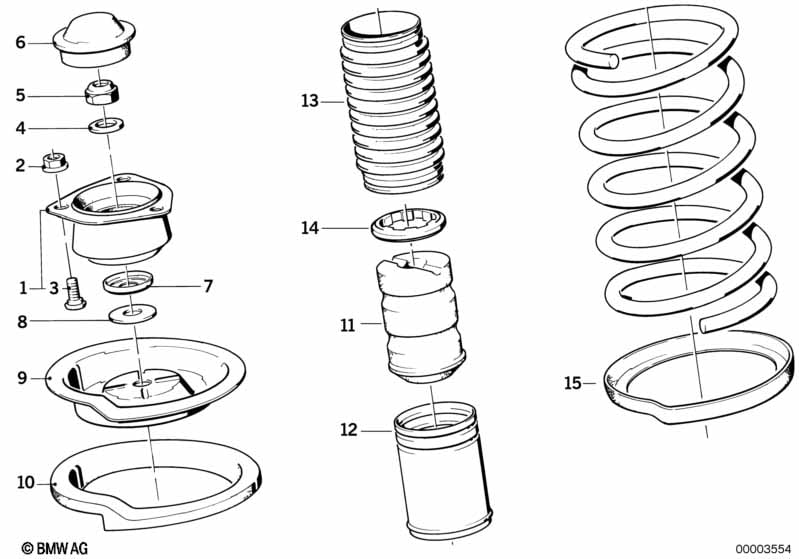

This Guide support/spring pad/attaching parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Guide support | 2 | 31331139452 | $88.77 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Covering cap | D=32MM | 2 | 31311139453 | $1.48 | Shop at ECS Tuning | ||||
| 01 | Guide support camber correction | +/- 30MIN. | 2 | 31331139484 | $221.88 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Pin | M8X18 ZNS3 | 6 | 31336765744 | $1.17 | Shop at ECS Tuning | ||||
| -- | Covering cap | D=32MM | 2 | 31311139453 | $1.48 | Shop at ECS Tuning | ||||
| 02 | Self-locking collar nut | M8-8-ZNS3 | 6 | 07119904295 | $0.36 | Shop at ECS Tuning | ||||
| 02 | Self-locking collar nut | M8-10 ZNS3 | 6 | 07119905374 | Shop at ECS Tuning | |||||
| 03 | Pin | M8X18 ZNS3 | 6 | 31336765744 | $1.17 | Shop at ECS Tuning | ||||
| 04 | Washer | A13/HV-ZNS | 2 | 02/1994 | 07119901766 | $0.30 | ENDED | Shop at ECS Tuning | ||
| 04 | Washer | 12-300 HV-ZNS3 | 2 | 07119904119 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Self-locking hex nut | M12X1.5-05 ZNS3 | 2 | 32216769539 | $0.83 | Shop at ECS Tuning | ||||
| 06 | Covering cap | D=32MM | 2 | 31311139453 | $1.48 | Shop at ECS Tuning | ||||
| 06 | Covering cap | D=28,5MM | 2 | 31331124335 | $1.71 | Shop at ECS Tuning | ||||
| 07 | Dust protection collar | 2 | 31331110196 | $1.84 | Shop at ECS Tuning | |||||
| 08 | Washer | 37X2,5MM ZNS3 | 2 | 31336776760 | $0.87 | Shop at ECS Tuning | ||||
| 09 | Upper spring plate | 2 | 31331128524 | $9.02 | Shop at ECS Tuning | |||||
| 10 | Spring pad upper | 3MM | 2 | 31331128523 | $4.52 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO COIL SPRING RED | ||||||||||
| 10 | Spring pad upper | 9MM | 2 | 31331128522 | $6.94 | Shop at ECS Tuning | ||||
| 11 | Additional shock absorber, front | 2 | 31331124449 | $19.12 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO M TECHNIC | ||||||||||
| 11 | Additional shock absorber, front | 2 | 31331133513 | $19.12 | Shop at ECS Tuning | |||||
| 12 | Protection tube | 2 | 31331134314 | $2.25 | Shop at ECS Tuning | |||||
| 15 | Spring pad lower | 3MM | 2 | 31331124322 | $4.47 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320i Guide support/spring pad/attaching parts?
- This technical diagram illustrates the Guide support/spring pad/attaching parts within the Front Axle group for the 3 Series E30 320i produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Guide support (Part #31331139452).
- Which models use the hardware listed in this Guide support/spring pad/attaching parts?
- The hardware and components featured in the Guide support/spring pad/attaching parts are specific to the 3 Series E30 320i produced during 1992. These technical specifications ensure that parts like the Guide support (31331139452) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Guide support/spring pad/attaching parts assembly?
- Each item in the Guide support/spring pad/attaching parts corresponds to the numbered list below the illustration. For the 3 Series E30 320i, you can identify the Guide support by locating its position on the schematic, which then links to the official BMW part number 31331139452 for the Front Axle section.
