Coil spring for BMW 3 Series E21 320i (1982)

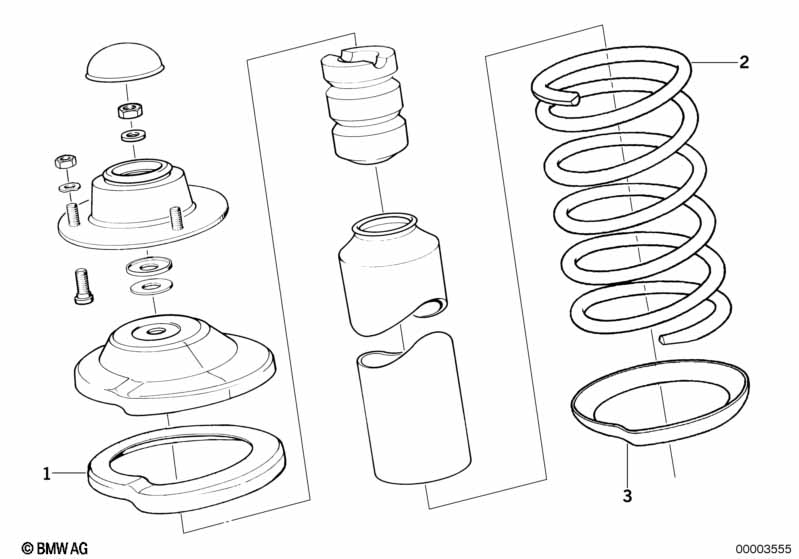

This Coil spring technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spring pad | 2 | 31331100636 | $13.07 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO COIL SPRING RED | ||||||||||
| 01 | Spring pad | 2 | 31331121422 | $6.11 | Shop at ECS Tuning | |||||
| 02 | Coil spring | 2 | 09/1979 | 31331124121 | ENDED | Shop at ECS Tuning | ||||
| 02 | Front coil spring | 2 | 09/1979 | 31331124122 | $114.68 | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 02 | Coil spring | 2 | 09/1979 | 31331121559 | $130.57 | ENDED | Shop at ECS Tuning | |||
| 03 | Spring pad | 2 | 31331100636 | $13.07 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO COIL SPRING RED | ||||||||||
| 03 | Spring pad | 2 | 31331121422 | $6.11 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320i Coil spring?
- This technical diagram illustrates the Coil spring within the Front Axle group for the 3 Series E21 320i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Spring pad (Part #31331100636).
- Which models use the hardware listed in this Coil spring?
- The hardware and components featured in the Coil spring are specific to the 3 Series E21 320i produced during 1982. These technical specifications ensure that parts like the Spring pad (31331100636) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Coil spring assembly?
- Each item in the Coil spring corresponds to the numbered list below the illustration. For the 3 Series E21 320i, you can identify the Spring pad by locating its position on the schematic, which then links to the official BMW part number 31331100636 for the Front Axle section.
