Front axle support/wishbone for BMW 8 Series E31 850Ci (1994)

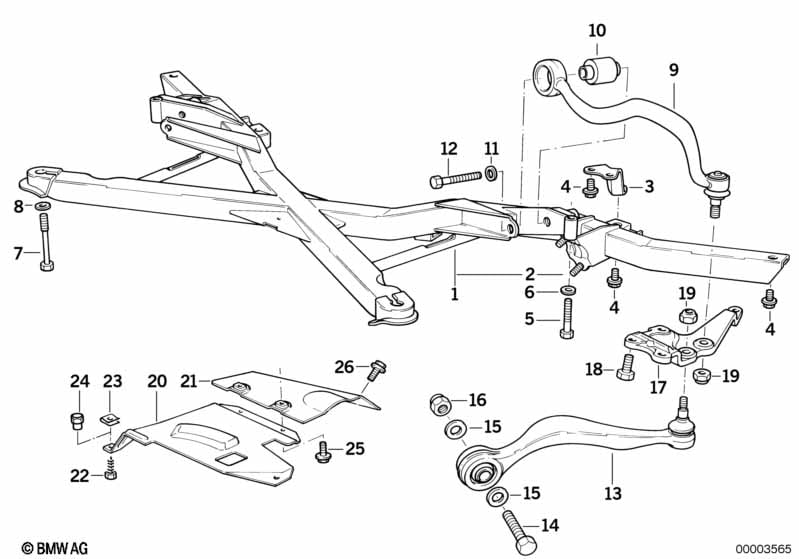

This Front axle support/wishbone technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cross reinforcement | 1 | 04/1992 | 31111140614 | $585.92 | Shop at ECS Tuning | ||||
| 02 | Pin | M8X18 ZNS3 | 4 | 04/1992 | 31336765744 | $1.17 | Shop at ECS Tuning | |||
| 03 | Adapter | 2 | 04/1992 | 31111140576 | $3.66 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M10X20 | 8 | 04/1992 | 33331132413 | $1.11 | Shop at ECS Tuning | |||
| 05 | Hex bolt | M14X1,5X90 | 2 | 04/1992 | 07119914851 | $3.51 | Shop at ECS Tuning | |||
| 06 | Washer | A15 ZNS3 | 2 | 04/1992 | 07119905829 | $0.74 | Shop at ECS Tuning | |||
| 07 | Reduced-shaft bolt | M10X150 | 2 | 04/1992 | 31111130687 | $2.06 | Shop at ECS Tuning | |||
| 08 | Washer | 10-200 HV-ZNNIV | 2 | 04/1992 | 07119904168 | $8.35 | Shop at ECS Tuning | |||
| 09 | Rod without rubber mounting left | 1 | 04/1992 | 31121139999 | $179.73 | Shop at ECS Tuning | ||||
| 09 | Rod without rubber mounting right | 1 | 04/1992 | 31121140000 | $179.73 | Shop at ECS Tuning | ||||
| 10 | Rubber mounting rod | 2 | 04/1992 | 31121136607 | $40.37 | Shop at ECS Tuning | ||||
| 11 | Washer | A15 ZNS3 | 2 | 04/1992 | 07119905829 | $0.74 | Shop at ECS Tuning | |||
| 12 | Hex bolt | M14X1,5X90 | 2 | 04/1992 | 07119914851 | $3.51 | Shop at ECS Tuning | |||
| 13 | Wishbone, left, aluminum | 1 | 04/1992 | 31121138477 | $309.82 | Shop at ECS Tuning | ||||
| 13 | Wishbone, right, aluminum | 1 | 04/1992 | 31121138478 | $309.82 | Shop at ECS Tuning | ||||
| 14 | Hex bolt | M12X1,5X77 | 2 | 04/1992 | 07119914684 | $2.09 | Shop at ECS Tuning | |||
| 15 | Washer | 23 X 12.4 X 3MM | 4 | 04/1992 | 31111136895 | $0.36 | Shop at ECS Tuning | |||
| 16 | Self-locking hex nut | M12X1,5-10-PHR | 2 | 04/1992 | 07129900047 | $0.62 | Shop at ECS Tuning | |||
| 17 | Left tie rod lever | 1 | 04/1992 | 31131136871 | $118.08 | ENDED | Shop at ECS Tuning | |||
| 17 | Right tie rod arm | 1 | 04/1992 | 31131136872 | $118.08 | Shop at ECS Tuning | ||||
| 18 | Hex bolt | M12X1,5X25 | 6 | 04/1992 | 07119911694 | $0.82 | Shop at ECS Tuning | |||
| 19 | Self-locking hex nut | M14X1,5 05 ZNS3 | 4 | 04/1992 | 31106769443 | $1.35 | Shop at ECS Tuning | |||
| 20 | Heat resistant plate front left | 1 | 04/1992 | 32211137535 | $40.73 | Shop at ECS Tuning | ||||
| 20 | Heat resistant plate front right | 1 | 04/1992 | 32211137537 | $35.13 | ENDED | Shop at ECS Tuning | |||
| 21 | Heat resistant plate rear left | 1 | 04/1992 | 32211141269 | $127.49 | ENDED | Shop at ECS Tuning | |||
| 21 | Heat resistant plate rear right | 1 | 04/1992 | 32211141270 | $127.49 | ENDED | Shop at ECS Tuning | |||
| 22 | Hex bolt with washer | M6X12-U1-8.8 | 2 | 12/1992 | 07119904517 | $0.36 | Shop at ECS Tuning | |||
| 24 | Blind rivet nut, countersunk head | M6 | 2 | 12/1992 | 52201975880 | $0.77 | Shop at ECS Tuning | |||
| 25 | Hex bolt with washer | M6X12-U1-8.8 | 4 | 04/1992 | 07119904517 | $0.36 | Shop at ECS Tuning | |||
| 26 | Hex bolt with washer | M6X16-U1-8.8 | 2 | 12/1992 | 07119904524 | $0.25 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 850Ci Front axle support/wishbone?
- This technical diagram illustrates the Front axle support/wishbone within the Front Axle group for the 8 Series E31 850Ci produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Cross reinforcement (Part #31111140614).
- Which models use the hardware listed in this Front axle support/wishbone?
- The hardware and components featured in the Front axle support/wishbone are specific to the 8 Series E31 850Ci produced during 1994. These technical specifications ensure that parts like the Cross reinforcement (31111140614) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front axle support/wishbone assembly?
- Each item in the Front axle support/wishbone corresponds to the numbered list below the illustration. For the 8 Series E31 850Ci, you can identify the Cross reinforcement by locating its position on the schematic, which then links to the official BMW part number 31111140614 for the Front Axle section.
